EVLSTCH03-36W-SR

Active

36W USB charger with selectable output voltage (5-9-12 V @3A) based on STCH03L and SRK1000B

データブリーフ ダウンロード

Order from our eStore and our distributors

Buy now
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products

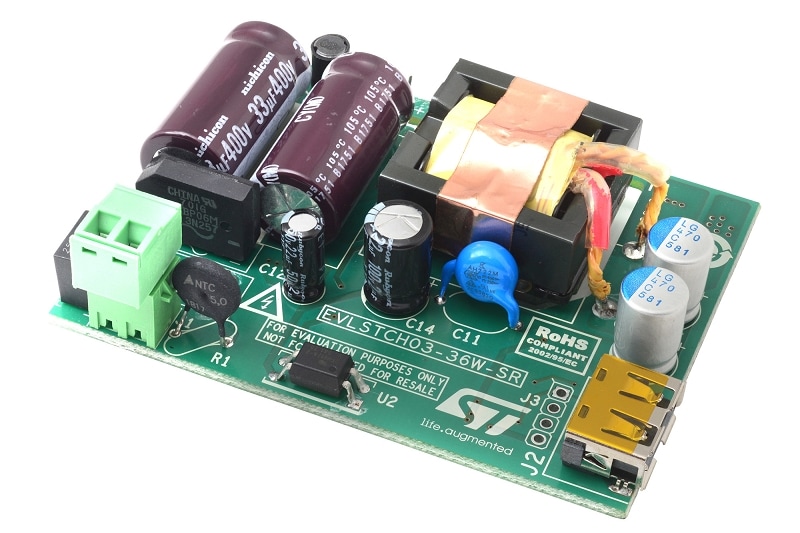

  • The EVLSTCH03-36W-SR shown in the image here is a 36 W wide-range mains USB charger demonstration board, with selectable output voltage (5 - 9 - 12 V @ 3 A output current), based on the STCH03L and SRK1000B.

    The power circuit is a quasi-resonant (QR) flyback converter, with peak current mode control, based on the STCH03L IC. The circuit operates with secondary side constant voltage (CV) regulation through an optocoupler and is capable of providing constant output current (CC) regulation using primary sensing feedback.
    The STCH03L embeds a 650 V, non-dissipative, HV startup cell, which, along with the extremely low quiescent current and burst-mode management, helps minimize residual input consumption, thus achieving less than 20 mW under no-load condition.
    At secondary side, the SRK1000B controller implements synchronous rectification to increase system efficiency: it controls the synchronous rectifier MOSFET, driving its gate with minimal turn-on delay and maximizing the turn-off time instant (through an adaptive mechanism) so that the residual conduction of the SR MOSFET body diode after turn-off reduces to the target value of 300 ns.
    The charger is designed to meet the most stringent energy saving recommendations (Eu CoC rev. 5 - Tier 2 and EPS of DOE USA) as well as EMI regulation EN55022-Class-B for line conducted noise emissions.

    主な特徴

    • Universal AC mains input voltage range: 90 V to 264 V
    • Output voltage: 5 - 9 - 12 V selectable @3 A continuous operation
    • Constant voltage (CV) regulation with optocoupler and constant current (CC) regulation with primary side sensing
    • No-load consumption < 20mW at 230 VAC (with load disconnected from charger)
    • 4 points average efficiency and 10% load efficiency in compliance with Eu CoC rev. 5 - Tier 2 (2016)
    • Line conducted EMI in compliance with EN55022 - Class B
    • Small form factor (73 x 55 x 15 mm)
    • RoHS compliant

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
Board production status
販売代理店からオーダー
STからオーダー
EVLSTCH03-36W-SR -
Active
70.0 1 EAR99 - - 在庫チェック

Distributor availability ofEVLSTCH03-36W-SR

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
MOUSER WORLDWIDE 10 1 Order Now

代理店レポートによる在庫データ: 2020-01-17

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

MOUSER

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2020-01-17

購入

EVLSTCH03-36W-SR

コア製品

-

製品ステータス

Active

Unit Price (US$)

70.0*

Distributor availability ofEVLSTCH03-36W-SR

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
MOUSER WORLDWIDE 10 1 Order Now

代理店レポートによる在庫データ: 2020-01-17

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

MOUSER

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2020-01-17

Unit Price (US$)

70

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
