製品概要
概要

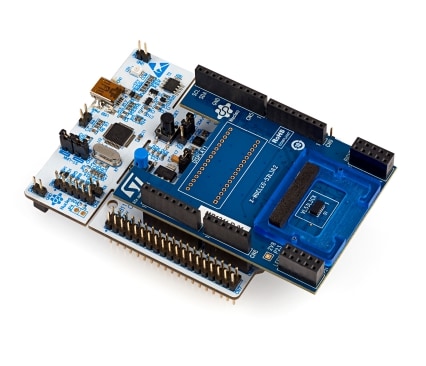

P-NUCLEO-53L3A2は、マルチターゲット検出が可能なToF（Time-of-Flight）測距センサ「VL53L3CX」を搭載した開発キットです。誰でも簡単にアプリケーションの学習や評価、および開発を行うことができます。 VL53L3CXは、STの特許取得済み技術であるFlightSense™（第3世代）を採用した最新のToF測距センサです。高性能の近距離 / 長距離測距センサを組み込み、マルチターゲット検出機能と自動汚れ補正機能を搭載しています。小型のリフロー対応パッケージにSPAD（Single Photon Avalanche Diode）アレイ、赤外フィルタ、および光学部品を集積することで、さまざまな周辺光の環境と幅広いカバー･ガラスに対応し、優れた測距性能を提供します。
また、STM32 NUCLEO-F401RE開発ボードにより、ユーザは性能、消費電力、機能などさまざまなニーズに応じて選択したSTM32マイクロコントローラを使用して、低コストで柔軟に試作を行うことができます。
-
特徴
- X-NUCLEO-53L3A2機能拡張ボード： マルチターゲット検出が可能なToF測距センサVL53L3CXを搭載
- STM32 NUCLEO-F401RE開発ボード
- VL53L3CX拡張子基板 x2
- 0.25mm / 0.5mm / 1mmのスペーサ（空隙のシミュレーション用）
- カバー･ガラスのサンプル x2
- Arduino UNO R3コネクタ搭載
- RoHS準拠
- 2枚のVL53L3CX拡張子基板をP-NUCLEO-53L3A2機能拡張ボード上で接続して、VL53L3CXをアプリケーションに組み込むことが可能
- コード･サンプルおよびグラフィカル･ユーザ･インタフェースを含む統合システム･ソフトウェアをVL53L3CXの製品ページ内「ツール & ソフトウェア」タブからダウンロード可能
おすすめ製品
Time-of-Flight sensors software expansion for STM32Cube
GUI for X-NUCLEO-53L3A2
All tools & software
-
-
製品型番 ステータス 概要 タイプ サプライヤ Worldwide worldwide Asia region Europe region Africa region North America region South America region Oceania region Afghanistan country Bahrain country Bangladesh country Bhutan country Brunei country Burma (Myanmar) country Cambodia country China country East Timor country India country Indonesia country Iraq country Japan country Jordan country Kazakhstan country Kuwait country Kyrgyzstan country Laos country Malaysia country Maldives country Mongolia country Nepal country Oman country Pakistan country Philippines country Qatar country Russian Federation country Saudi Arabia country Singapore country South Korea country Sri Lanka country Taiwan country Tajikistan country Thailand country Turkmenistan country United Arab Emirates country Uzbekistan country Vietnam country Yemen country Albania country Andorra country Armenia country Austria country Azerbaijan country Belarus country Belgium country Bosnia and Herzegovina country Bulgaria country Croatia country Cyprus country Czech Republic country Denmark country Estonia country Finland country France country Georgia country Germany country Greece country Hungary country Iceland country Ireland country Israel country Italy country Latvia country Liechtenstein country Lithuania country Luxembourg country Macedonia country Malta country Moldova country Monaco country Montenegro country Netherlands country Norway country Poland country Portugal country Romania country San Marino country Serbia country Slovakia country Slovenia country Spain country Sweden country Switzerland country Turkey country Ukraine country United Kingdom country Vatican City country Algeria country Angola country Benin country Botswana country Burkina country Burundi country Cameroon country Cape Verde country Central African Republic country Chad country Comoros country Democratic Republic of Congo country Djibouti country Egypt country Equatorial Guinea country Eritrea country Ethiopia country Gabon country Gambia country Ghana country Guinea country Guinea-Bissau country Ivory Coast country Kenya country Lesotho country Liberia country Libya country Madagascar country Malawi country Mali country Mauritania country Mauritius country Morocco country Mozambique country Namibia country Niger country Nigeria country Rwanda country Sao Tome and Principe country Senegal country Seychelles country Sierra Leone country Somalia country South Africa country Swaziland country Tanzania country Togo country Tunisia country Uganda country Zambia country Zimbabwe country Antigua and Barbuda country Bahamas country Barbados country Belize country Canada country Costa Rica country Dominica country Dominican Republic country El Salvador country Grenada country Guatemala country Haiti country Honduras country Jamaica country Mexico country Nicaragua country Panama country Saint Kitts and Nevis country Saint Lucia country Saint Vincent and the Grenadines country Trinidad and Tobago country United States country Argentina country Bolivia country Brazil country Chile country Colombia country Ecuador country Guyana country Paraguay country Peru country Suriname country Uruguay country Venezuela country Australia country Fiji country Kiribati country Marshall Islands country Micronesia country Nauru country New Zealand country Palau country Papua New Guinea country Samoa country Solomon Islands country Tonga country Tuvalu country Vanuatu country STSW-IMG016
量産中GUI for X-NUCLEO-53L3A2
Imaging Software ST
-
-
-
製品型番 ステータス 概要 タイプ サプライヤ Worldwide worldwide Asia region Europe region Africa region North America region South America region Oceania region Afghanistan country Bahrain country Bangladesh country Bhutan country Brunei country Burma (Myanmar) country Cambodia country China country East Timor country India country Indonesia country Iraq country Japan country Jordan country Kazakhstan country Kuwait country Kyrgyzstan country Laos country Malaysia country Maldives country Mongolia country Nepal country Oman country Pakistan country Philippines country Qatar country Russian Federation country Saudi Arabia country Singapore country South Korea country Sri Lanka country Taiwan country Tajikistan country Thailand country Turkmenistan country United Arab Emirates country Uzbekistan country Vietnam country Yemen country Albania country Andorra country Armenia country Austria country Azerbaijan country Belarus country Belgium country Bosnia and Herzegovina country Bulgaria country Croatia country Cyprus country Czech Republic country Denmark country Estonia country Finland country France country Georgia country Germany country Greece country Hungary country Iceland country Ireland country Israel country Italy country Latvia country Liechtenstein country Lithuania country Luxembourg country Macedonia country Malta country Moldova country Monaco country Montenegro country Netherlands country Norway country Poland country Portugal country Romania country San Marino country Serbia country Slovakia country Slovenia country Spain country Sweden country Switzerland country Turkey country Ukraine country United Kingdom country Vatican City country Algeria country Angola country Benin country Botswana country Burkina country Burundi country Cameroon country Cape Verde country Central African Republic country Chad country Comoros country Democratic Republic of Congo country Djibouti country Egypt country Equatorial Guinea country Eritrea country Ethiopia country Gabon country Gambia country Ghana country Guinea country Guinea-Bissau country Ivory Coast country Kenya country Lesotho country Liberia country Libya country Madagascar country Malawi country Mali country Mauritania country Mauritius country Morocco country Mozambique country Namibia country Niger country Nigeria country Rwanda country Sao Tome and Principe country Senegal country Seychelles country Sierra Leone country Somalia country South Africa country Swaziland country Tanzania country Togo country Tunisia country Uganda country Zambia country Zimbabwe country Antigua and Barbuda country Bahamas country Barbados country Belize country Canada country Costa Rica country Dominica country Dominican Republic country El Salvador country Grenada country Guatemala country Haiti country Honduras country Jamaica country Mexico country Nicaragua country Panama country Saint Kitts and Nevis country Saint Lucia country Saint Vincent and the Grenadines country Trinidad and Tobago country United States country Argentina country Bolivia country Brazil country Chile country Colombia country Ecuador country Guyana country Paraguay country Peru country Suriname country Uruguay country Venezuela country Australia country Fiji country Kiribati country Marshall Islands country Micronesia country Nauru country New Zealand country Palau country Papua New Guinea country Samoa country Solomon Islands country Tonga country Tuvalu country Vanuatu country X-CUBE-TOF1
量産中Time-of-Flight sensors software expansion for STM32Cube
STM32 ODE Sense SW ST
-
すべてのリソース
|
Resource title
|
バージョン
|
Latest update
|
|---|
Board Manufacturing Specifications (1)
|
Resource title
|
バージョン
|
Latest update
|
||
|---|---|---|---|---|
| ZIP | 1.0 | 08 Dec 2020 |
08 Dec 2020
|
If you don't want to login now, you can download the CAD design file by simply providing your name and e-mail address in the form below and validating it.
This allows us to stay in contact and inform you about updates of this CAD design file.
For subsequent downloads this step will not be required for most of our CAD design files.
To validate your e-mail and start the download, please click on the link inside the e-mail that has been sent to you. This link will be valid for 24 hours. Please check your spam filters in case you did not receive the e-mail.
Unfortunately, the link you clicked didn't work. Don't worry, here are the steps you can take to get your download started:
If you still can't download the CAD design file, please reach out to us on the ST Community and we will help you- Ensure you are using the same browser used to made the initial request
- Check that cookies are allowed in your browser
- Update your browser to its latest version
- Please also note that links forwarded by somebody else will not work
The e-mail address that you have entered during the download attempt has not yet been validated. Please check your inbox for the e-mail with the download link. In case you did not receive the e-mail, or you entered a wrong e-mail address, you can start-over the process.
品質 & 信頼性
| 製品型番 | マーケティング･ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | WEEE Compliant | 材料宣誓書** |
|---|---|---|---|---|---|---|
| P-NUCLEO-53L3A2 |
量産中
|
CARD | インダストリアル | Ecopack1 | - |
|
Marketing Status
Package
CARD
Grade
Industrial
RoHS Compliance Grade
Ecopack1
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
|
製品型番
|
販売代理店から購入
|
STから購入
|
製品ステータス
|
サプライヤ
|
概要
|
ECCN (US)
|
ECCN (EU)
|
Country of Origin
|
Budgetary Price (US$)*/Qty
|
||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P-NUCLEO-53L3A2 |
Available at
4 distributors
販売代理店在庫P-NUCLEO-53L3A2
販売代理店在庫データ: 2021-10-23
販売代理店
DIGIKEY 在庫 58Min.Order 1MOUSER 在庫 64Min.Order 1Farnell Element14 在庫 24Min.Order 1ANGLIA Live 在庫 9Min.Order 1販売代理店在庫データ: 2021-10-23 |
Buy Direct |
量産中
|
ST | Multi-targets ranging sensor Nucleo pack based on VL53L3CX for STM32 Nucleo | EAR99 | NEC | CHINA | 56.0 / 1 |
販売代理店在庫P-NUCLEO-53L3A2
|
販売代理店
|
地域 | 在庫 | 最小発注数量 | パートナー企業リンク |
|---|---|---|---|---|
| DIGIKEY | WORLDWIDE | 58 | 1 | Buy from Distributor |
| MOUSER | WORLDWIDE | 64 | 1 | Buy from Distributor |
| Farnell Element14 | EUROPE | 24 | 1 | Buy from Distributor |
| ANGLIA Live | EUROPE | 9 | 1 | Buy from Distributor |
販売代理店在庫データ: 2021-10-23
DIGIKEY
在庫
58Min.Order
1MOUSER
在庫
64Min.Order
1Farnell Element14
在庫
24Min.Order
1ANGLIA Live
在庫
9Min.Order
1販売代理店在庫データ: 2021-10-23
概要
Multi-targets ranging sensor Nucleo pack based on VL53L3CX for STM32 Nucleo
ECCN (US)
EAR99
ECCN (EU)
NEC
Budgetary Price (US$)* / Qty
56.0 / 1
Country of Origin
CHINA
（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
