Product overview
概要
The main objective of the STM32WBA6xxx microcontroller reference designs is to recommend a layout and associated BOM for dedicated applications (these boards are not for sale).
These reference designs can be manufactured from files available for download from the www.st.com website. The access to all GPIOs allows the prototyping of a complete application.
Sensitive layout parts can be extracted and pasted in any user board design with the same PCB characteristics and feature set.
The STM32WBA6xxx microcontroller reference designs are provided with the STM32WBA comprehensive software HAL library. The STM32CubeWBA MCU Package contains many software examples developed with the NUCLEO-WBA65RI Nucleo-64 board. These examples can be easily adapted for the STM32WBA6xxx microcontroller reference designs.
-
All features
- Includes ST state-of-the-art patented technology
- Reference design

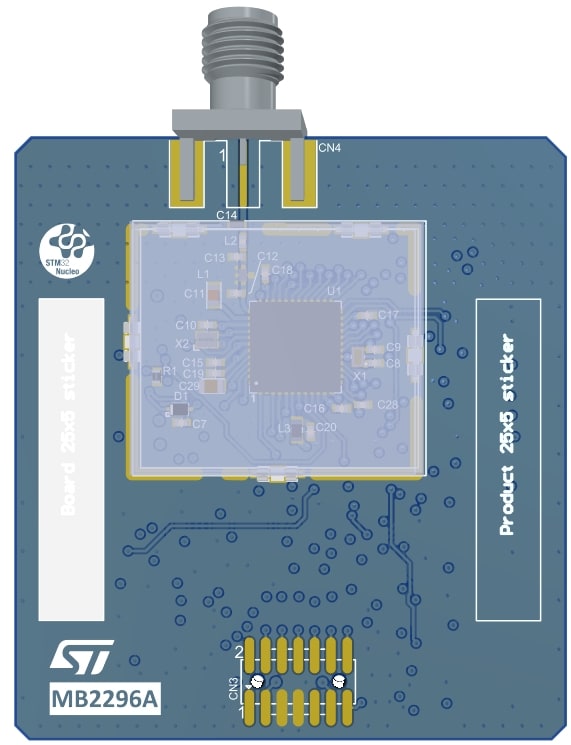

- Microcontroller RF board
- Microcontroller
- STM32WBA6xxx microcontrollers in a variety of packages
- 2.4 GHz transceiver supporting Bluetooth® specification v5.4
- Dedicated Arm® Cortex®‑M0+ processor for real-time radio layer
- Connectors
- Two 50-pin miniboard headers
- ST-LINK 14-pin STDC14
- RF SMA for antenna
- Power supply
- ST-LINK USB VBUS through the mezzanine board (MB1801).
- Debugging/Programming
- Suitable for ST-LINK/V2 and STLINK-V3 debuggers/programmers with USB re-enumeration capability through the mezzanine board: mass storage, Virtual COM port, and debug port
- Software
- Comprehensive free software libraries and examples available with the STM32CubeWBA MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
