製品概要
概要

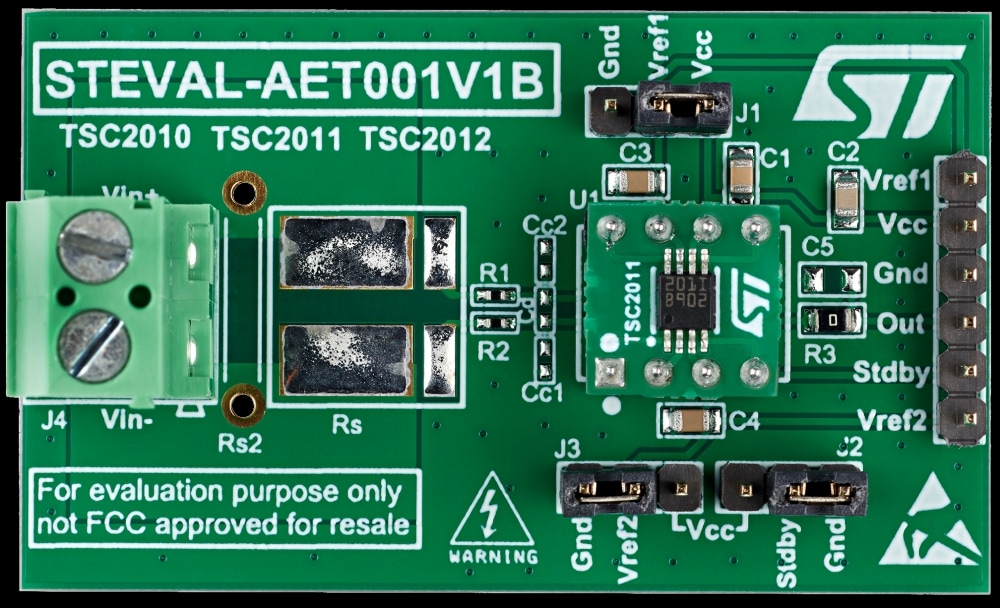

The STEVAL-AETKT1V2 evaluation kit represents a bidirectional current sense amplifier with high side or low side sense resistor. The kit consists of a main board and individual daughter boards for the TSC2011, TSC2010 and TSC2012 high voltage, bidirectional, current sense amplifier ICs, which provide a a fixed gain of 60, 20 or 100, respectively.
The thin film resistor on the TSC201x devices ensure extremely precise gain and very high common-mode rejection ratio (CMRR) performance, even in high frequency ranges. They accurately measure current by amplifying the voltage (VSENSE) across a shunt resistor connected to the input. Moreover, the ability to fix the output common mode voltage means that the device can be either used as unidirectional or bidirectional current sensing amplifier.
-
特徴
- Wide common mode voltage range: -20 to 70 V
- Offset voltage: ±200 μV max.
- 2.7 to 5.5 V supply voltage
- Quiescent current: 20 μA in Shutdown mode
- Temperature range: -40 to 125°C
- SO8 and MiniSO8 package
- RoHS compliant
推奨コンテンツ
すべてのリソース
タイトル | バージョン | 更新日 |
---|
Board Manufacturing Specifications (1)
タイトル | バージョン | 更新日 | ||
---|---|---|---|---|
ZIP | 1.0 | 06 Oct 2020 | 06 Oct 2020 |
BOM (1)
タイトル | バージョン | 更新日 | ||
---|---|---|---|---|
1.0 | 06 Oct 2020 | 06 Oct 2020 |
Schematic Pack (1)
タイトル | バージョン | 更新日 | ||
---|---|---|---|---|
1.0 | 06 Oct 2020 | 06 Oct 2020 |
品質 & 信頼性
製品型番 | マーケティング・ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | WEEE Compliant | 材料宣誓書** |
---|---|---|---|---|---|---|
STEVAL-AETKT1V2 | 量産中 | CARD | インダストリアル | Ecopack2 | はい | |
STEVAL-AETKT1V2
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ・ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
製品型番 | Order from distributors | STから購入 | コア製品 | 製品ステータス | サプライヤ | ECCN (US) | ECCN (EU) | Country of Origin | Budgetary Price (US$)*/Qty | |
---|---|---|---|---|---|---|---|---|---|---|
STEVAL-AETKT1V2 | distributors 販売代理店に在庫がない場合は、STのセールス・オフィスまでお問い合わせください | TSC2010, TSC2011, TSC2012 | 量産中 | ST | EAR99 | NEC | ITALY | |
販売代理店に在庫がない場合は、STのセールス・オフィスまでお問い合わせください
(*)概算用の参考価格(US$)です。現地通貨でのお見積りについては、STのセールス・オフィスまたは販売代理店までお問い合わせください。
