Product overview
概要

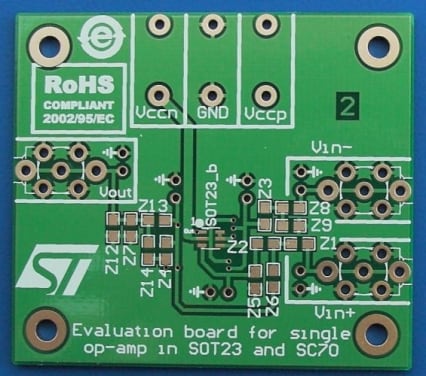

The STEVAL-CCA022V1 demonstration board is designed to help characterize single operational amplifiers in SOT23-5 (two different pinouts) and SC70-5 packages.
Operational amplifiers in SOT23-6 and SC70-6 packages can also be characterized but their standby pin is not usable because it is connected to VCC + on the board.
The STEVAL-CCA022V1 allows to characterize, among the others, the following op-amps (not included in the package): TS507, TSV621, TSV631, TSV911, TSV991, TS1851, TS1871, TS931, TS941, TS951, TS971, TS321.
-
All features
- This demonstration board with its components allow it to be configured as:
Low-pass Sallen-Key circuit High-pass Sallen-Key circuit Differential amplifier AC-coupled circuit In-loop compensation circuit Out-of-loop compensation circuit Numerous other possible configurations - RoHS Compliant
