The STEVAL-CCA058V1 training kit is intended for hands-on training on operational amplifiers and comparator-based analog circuits.
You can use the kit in an academic context for students' training, as well as for professionals' training: junior analog engineers, distributors, and customers. It is also useful for a fast evaluation and prototyping of low frequency op amp-based applications.

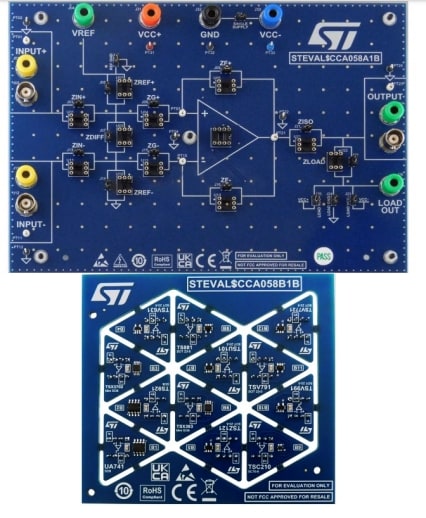

The STEVAL-CCA058V1 consists of a configurable board, which features the most widely used op-amp-based schematics and applications, and ST op-amps mounted on DIP adaptors.
It should be used with a set of through passive components (resistors and capacitors), and a set of lab instruments (power supply, function generator, multimeter, and oscilloscope).
The kit allows the trainee to experiment the most common op-amp-based schematics. It also allows learning how to choose the most suited op-amp for a custom application. You can find the detailed documentation on guided experiments at www.st.com.
-
All features
- Schematics and applications based on operational amplifiers and comparators:
- Follower, inverter, noninverter
- Filters
- Low-side current sensing
- Photodiode transimpedance amplification
- Low cost to high-performance low-voltage operational amplifiers:
- Rail-to-rail
- High bandwidth
- Low offset
- High output current
- Low-power
