STEVAL-IHM028V2

検索履歴

ブックマーク

Please log in to show your saved searches.

概要

サンプル & 購入

ソリューション

ドキュメント

CADリソース

ツール & ソフトウェア

品質 & 信頼性

はじめる

Partner products

Sales Briefcase

Please enter your desired search query and search again

製品概要

概要

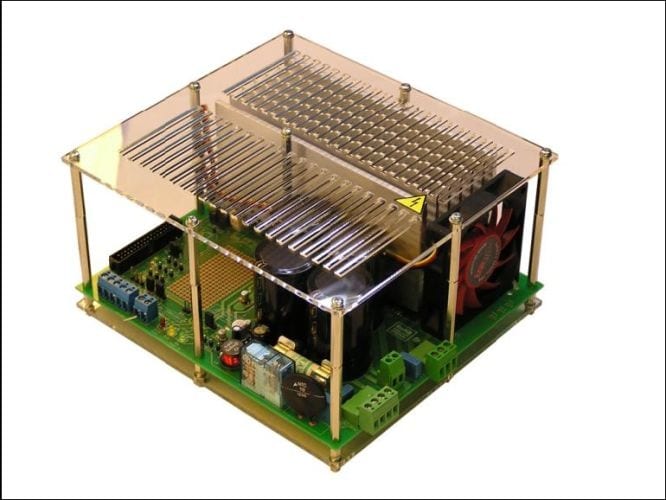

The goal of the STEVAL-IHM028V2 product evaluation board is to present a universal, fully tested and populated design consisting of a 3- phase inverter bridge based on the 600 V, 17 A intelligent power module STGIPS20C60. The IPM itself consists of short-circuit rugged IGBTs with negative temperature co-efficiency. It also contains a wide range of auxiliary functions like undervoltage lockout and smart shutdown.

Thanks to these advanced characteristics, the system has been specifically designed to achieve accurate and fast conditioning of the current feedback, matching the typical requirements for field oriented control (FOC).

This board can be used to evaluate a wide range of applications such as HVAC (air conditioners), power white goods and high-end single-phase power tools.

特徴
Complete solution for a 2 kW power inverter

HV supply mode: voltage 90 VAC to 285 VAC or direct DC line 125 V DC to 400 V DC

Input voltage range extended to +400 V, for PFC compliance

Input inrush limiter with bypassing relay

Brake feature with overvoltage comparator

Single- or three-shunt resistor current sensing method

Hall sensor or encoder input
Tachometer input

Overtemperature and overcurrent hardware protection

Active fan with automatic overtemperature switching

Compact and safe design

Universal conception for further evaluation with bread board and testing pins

RoHS compliant
