製品概要
概要

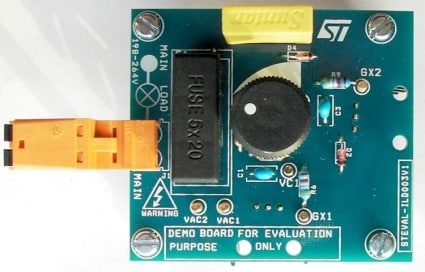

The STEVAL-ILD003V1 demonstration board is designed to propose a low-cost analog dimmer topology using a sensitive SCR TS820-600FP. The dimmer can drive typical low-consumption lamps, particularly CFL and LED dimmable lamps. Through-hole technology is used for the most important components such as LC filter, gate resistor, turn-on delay capacitor, etc., in order to allow board modification, if needed.
The STEVAL-ILD003V1 eliminates flickering thanks to its continuous current applied through the sensitive SCR gate. This dimmer could easily replace a standard low-cost analog Triac light dimmer using a Diac-controlled circuit.
-
特徴
- Operation for 2-wire wall dimmer
- Leading-edge control (compatible with all lamps commonly found on the market)
- Operation on 230 V line rms voltage (198 to 264 V) and 50 Hz or 60 Hz line frequency
- Dimmable power range with halogen, CFL and LED lamps (without heatsinks mounted on SCRs1):
- 3 to 350 W for 230 V rms line
- Maximum operating ambient temperature: 60 °C
- Power efficiency @ 350 W / 230 V > 99%
- Standby losses @ 230 V < 0.5 W (could be reduced to 0 if potentiometer features a mechanical switch to open the circuit at minimum setting)
- RoHS compliant
- Compliance with EMC standards
- IEC 61000-4-4: criteria A for more than 2 kV
- Compliant with EN55015 with 350 W / 230 V halogen lamp
All resources
| Resource title | Latest update |
|---|
製品スペック (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| 19 Sep 2016 | 19 Sep 2016 |
ユーザ･マニュアル (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| 17 Dec 2019 | 17 Dec 2019 |
Evaluation Board Terms of Use (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| 28 Apr 2021 | 28 Apr 2021 |
All resources
| Resource title | Latest update |
|---|
Board Manufacturing Specifications (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| ZIP | 16 Jun 2015 | 16 Jun 2015 |
BOM (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| 16 Jun 2015 | 16 Jun 2015 |
Schematic Pack (1)
| Resource title | Latest update | |||
|---|---|---|---|---|
| 16 Jun 2015 | 16 Jun 2015 |
品質 & 信頼性
| 製品型番 | Marketing Status | パッケージ | グレード | RoHSコンプライアンスグレード | WEEE Compliant | 材料宣誓書** |
|---|---|---|---|---|---|---|
| STEVAL-ILD003V1 | 量産中 | CARD | インダストリアル | Ecopack2 | - | |
STEVAL-ILD003V1
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
| 製品型番 | 販売代理店から購入 | STから購入 | コア製品 | 製品ステータス | サプライヤ | ECCN (US) | ECCN (EU) | Country of Origin | Budgetary Price (US$)*/Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-ILD003V1 | 2 distributors | Buy Direct | TS820 | 量産中 | - | EAR99 | NEC | ITALY | 91.0 / 1 |
（*）概算用の希望小売単価（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
