STEVAL-ILL080V1

Active

18 W tube replacement zero ripple LED driver using HVLED001A quasi resonant flyback controller and STF10LN80K5

データブリーフ ダウンロード

Order from our eStore and our distributors

購入
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products

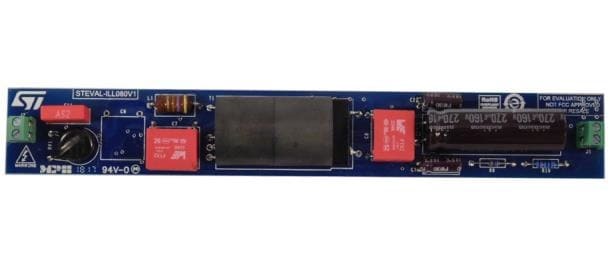

  • The STEVAL-ILL080V1 provides a 200 mA, ripple-free output current to supply a single LED string between 75 and 93 V.

    The form factor and specific component selection render this board suitable for rounded enclosures, as replacements for fluorescent lamp tubes (T8 size).
    As typical applications are totally sealed, non isolated, high power factor SEPIC topology is used to achieve a high power factor, low THD (< 20%) and very high efficiency, as well as allowing input current ripple steering, which dramatically reduces EMI, even with small input filters.
    The HVLED001A controller protections manage input voltage variations, excessive input voltage (overvoltage like surge or bursts) and very low input voltages.
    The efficiency of the application is very high, compared with similar wattage applications.

    主な特徴

    • Input voltage: Vin = 180 - 264 Vrms, f = 45 - 66 Hz
    • Output current: 200 mA
    • 100 Hz output current ripple: < 1%
    • LED string voltage: 83 V ±10%
    • No load output voltage: 110 V
    • High power factor, low THD
    • No-load: better than 300 mW at 230 Vin
    • Full load efficiency: > 85 %
    • Short circuit protection with auto restart
    • RoHS compliant

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
販売代理店からオーダー
STからオーダー
STEVAL-ILL080V1 HVLED001A, STF10LN80K5
Active
31.0 1 EAR99 ITALY 在庫チェック

Distributor availability ofSTEVAL-ILL080V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
RS COMPONENTS EUROPE 2 1 Order Now
Farnell Element14 EUROPE 23 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

代理店レポートによる在庫データ: 2019-12-12

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

RS COMPONENTS

在庫

2

Min.Order

1

地域

EUROPE Order Now

Farnell Element14

在庫

23

Min.Order

1

地域

EUROPE Order Now

ANGLIA Live

在庫

1

Min.Order

1

地域

EUROPE Order Now

代理店レポートによる在庫データ: 2019-12-12

購入

STEVAL-ILL080V1

コア製品

HVLED001A, STF10LN80K5

製品ステータス

Active

Unit Price (US$)

31.0*

Distributor availability ofSTEVAL-ILL080V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
RS COMPONENTS EUROPE 2 1 Order Now
Farnell Element14 EUROPE 23 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

代理店レポートによる在庫データ: 2019-12-12

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

RS COMPONENTS

在庫

2

Min.Order

1

地域

EUROPE Order Now

Farnell Element14

在庫

23

Min.Order

1

地域

EUROPE Order Now

ANGLIA Live

在庫

1

Min.Order

1

地域

EUROPE Order Now

代理店レポートによる在庫データ: 2019-12-12

Unit Price (US$)

31

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

関連アプリケーション

LED照明 & 制御

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB3270
      18 W tube replacement zero ripple LED driver using HVLED001A quasi resonant flyback controller and STF10LN80K5
      1.0
      274.02 KB
      PDF
      DB3270

      18 W tube replacement zero ripple LED driver using HVLED001A quasi resonant flyback controller and STF10LN80K5

ハードウェアリソース

    • 概要 Version Size Action
      STEVAL-ILL080V1 gerber files 1.0
      52.95 KB
      ZIP

      STEVAL-ILL080V1 gerber files

    • 概要 Version Size Action
      STEVAL-ILL080V1 BOM 1.2
      158.58 KB
      PDF

      STEVAL-ILL080V1 BOM

    • 概要 Version Size Action
      STEVAL-ILL080V1 schematics 1.0
      117.72 KB
      PDF

      STEVAL-ILL080V1 schematics

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant Material Declaration**
STEVAL-ILL080V1
Active
CARD インダストリアル Ecopack2 -

STEVAL-ILL080V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
