製品概要
Key Benefits
Form factor
STEVAL-IOD04KT1 is a form factor design which fits industrial sensors embodiment
Field-test ready
The STSW-IOD04K is the associated software package including the IO-Link stack v1.1, IODD, and control software for industrial sensors
IO-Link made easier
Our design comes with its IODD file, which allows it to be recognized as a commercial IO-Link Device
概要
The STEVAL-IOD04KT1 is a reference design kit that exploits the features of the L6364W IO-Link dual-channel device transceiver.
The kit consists of the STEVAL-IOD004V1 main board (not available for sale), the STLINK-V3MINI programmer and debugger tool, a 14-pin flat cable, and an M8 to M12 standard industrial connector adapter.
The kit acts as a modern smart industrial sensor to be connected to a master IO-Link hub (or a suitable PLC interface).
The power supply for the MCU, sensors, and other logic devices derives from the DC-DC converter controller embedded in the L6364W.
The on-board STM32G071EB microcontroller runs an IO-Link demo stack v.1.1, which controls the IO-Link communication, and the software code that manages the L6364W transceiver and the MEMS industrial sensors.
The tiny dimensions of the main board have been achieved thanks to the small sizes of the CSP package options of L6364W and STM32G071EB.
Connect the main board to an IO-Link master via the adapter and the M8 connector included in the kit for normal operation. Connect the same board to the STLINK-V3MINI through the flat cable only if you want to program the STM32G071EB with a new firmware.
-
All features
- Kit content:

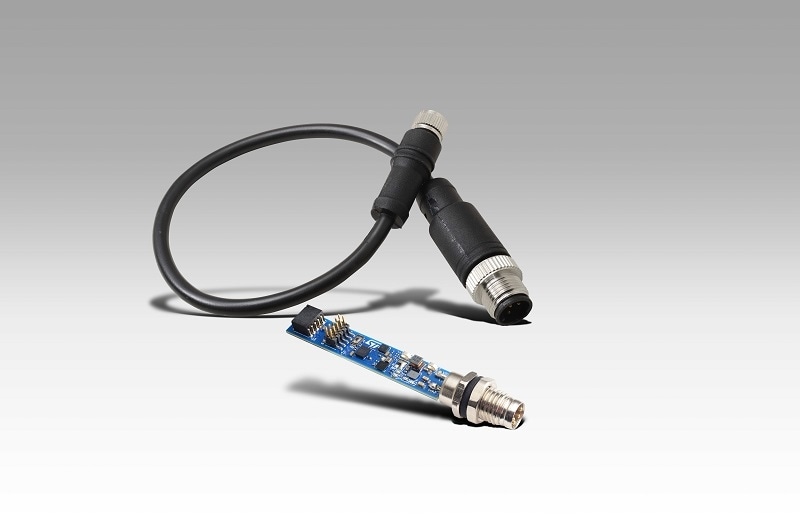

STEVAL-IOD004V1 (45.8 x 8.3 mm) main board with shape easy to be integrated in industrial sensors housing (not available for separate sale) STLINK-V3MINI programmer and debugger tool M8-M12 industrial connector adapter including a 20 cm cable 14-pin flat cable - Main board features:
Industrial sensor node based on STM32G071EB (mainstream Arm Runs an IO-Link v.1.1 demo-stack and MEMS control software, included in the companion package STSW-IOD04K together with the IODD file Operating voltage range 7 to 32 V Four-pole M8 industrial standard connector L6364W embedded DC-DC converter provides 3.3 V supply for all on-board ICs General-purpose LEDs for transmission, programming/debugging, warning, and status Jumpers for CQ and DIO selection in independent or joint mode Switch for transmission mode selection (transparent, single, or multioctet) Reset button 10-pin connector for sensor expansion options SWD connector for debugging and programming capability Protections against surge pulse (up to ± 3APK with 500 Ω coupling) and reverse polarity EMC and EMI tested according to standard requirements RoHS compliant
