Product overview
概要

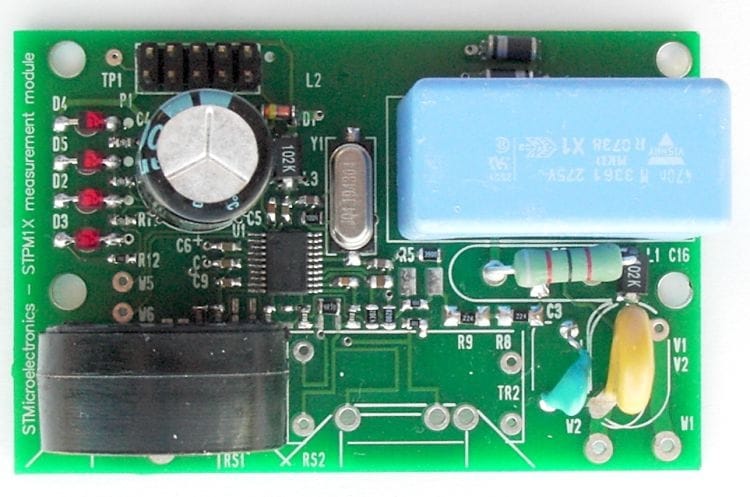

The STEVAL-IPE018V1 demonstration board is a class 0.5, single-phase microprocessor-based meter for power line systems of Vnom= 140 to 300 VRMS, Inom/ Imax= 2/20 ARMS, flin= 45 to 65 Hz and Tamb= -40 to +85 °C. One current transformer is used for current sensing.
The STEVAL-IPE018V1 demonstration board has a 10-pin connector to be interfaced to a microcontroller or to a PC through a parallel or serial programmer for reading data.
-
All features
- Single-phase, class 0.5 accuracy
- Vnom(RMS) = 140 to 300 V, Inom/ Imax(RMS) = 2/20 A, flin= 45 to 65 Hz
- Capacitive power supply
- SPI interface connector
- RoHS compliant
