STEVAL-ISA109V2   Product is in volume production.

800 mA, 3 MHz, adjustable output high efficiency dual-mode buck-boost DC-DC converter based on the STBB2

データブリーフのダウンロード

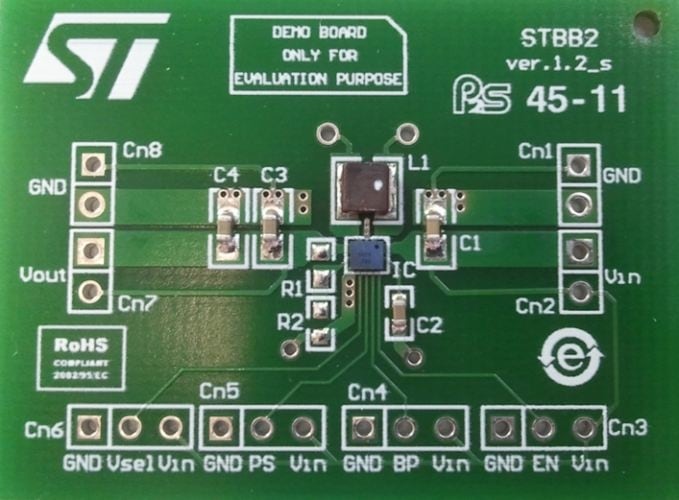

The STEVAL-ISA109V2 is designed to aid in the evaluation of the STBB2, a high efficiency buck-boost DC-DC converter capable of providing regulated output voltages in the range of 1.2 V to 5.5 V with an input voltage between 2.3 V and 5.5 V.

The board comes with the adjustable version of the STBB2 pre-mounted, with the output voltage set to 3.3 V. For this version, the VSELpin must be connected to VIN.

The board can also demonstrate the performance of the fixed version of the STBB2, by replacing R1with a 0 Ω resistor and disconnecting R2.

Key Features

  • Input voltage: from 2.3 V to 5.5 V
  • Output voltage: 3.3 V
  • Output current: 800 mA
  • Operating frequency: 3 MHz
  • RoHS compliant

画像

×

リソース

技術文書

製品スペック
Description バージョン サイズ
DB1942 DB1942: 800 mA, 3 MHz, adjustable output high efficiency dual-mode buck-boost DC-DC converter based on the STBB2 1.0 243 KB

ハードウェアリソース

Board Manufacturing Specifications
Description バージョン サイズ
STEVAL-ISA109V2 gerber files 1.0 72 KB
Bill of Materials
Description バージョン サイズ
STEVAL-ISA109V2 BOM 1.0 16 KB
Schematic Pack
Description バージョン サイズ
STEVAL-ISA109V2 schematics 1.0 100 KB

Publications and Collaterals

フライヤー
Description バージョン サイズ
eDesignSuite-The smart way to design your application 1.0 842 KB

法務

ライセンス契約
Description バージョン サイズ
Evaluation products license agreement 1.4 128 KB
サポート & コミュニティ
Related Applications

サンプル & 購入

製品型番 Core Product Marketing Status Unit Price (US$) * 数量 ECCN (US) Country of Origin More info Order from ST Order from Distributors
STEVAL-ISA109V2 STBB2 Active 38.0 1 EAR99 ITALY MORE INFO 直接購入 買い物かごに追加 DISTRIBUTOR AVAILABILITY
test

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
