STEVAL-ISA154V1

Active

0.7 A step-down switching regulator evaluation board based on the L5980

データブリーフ ダウンロード

Order from our eStore and our distributors

購入
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products

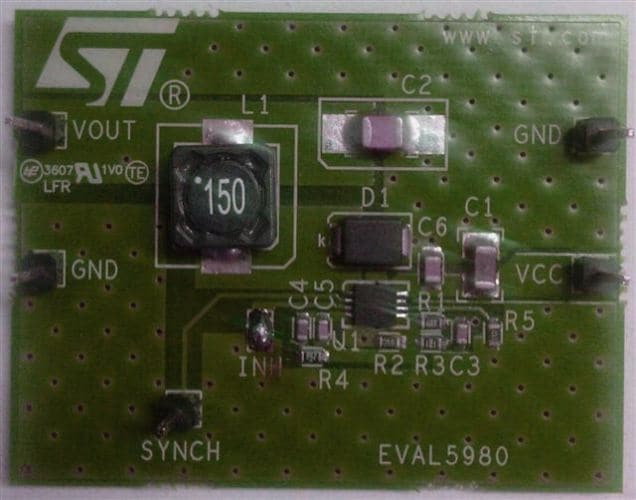

  • The STEVAL-ISA154V1 product evaluation board provides the design engineer with a fully functional step-down switching regulator with an output current of up to 0.7 A. The STEVAL-ISA154V1 integrates STMicroelectronics' L5980 step-down switching regulator together with all the external components required for a typical application. The rated voltage of the input capacitor and the Schottky diode rectifier repetitive peak reverse voltage are both 25 V, making the board capable of covering the entire 2.9 V - 18 V input voltage range of the L5980 device. The board features an external resistor divider (R1 and R2) designed for an output voltage of 3.3 V. The output voltage can be set to a level from 0.6 V up to the rated voltage of the output capacitor (16 V). The compensation network on the evaluation board allows the use of an MLCC as output filter to keep the loop stable. The inductor saturation current and forward current of the Schottky diode are within the current limit values. The switching frequency on the board is set to 500 kHz by means of the R5 resistor connected to pin Fsw.

    主な特徴

    • 0.7 A DC output current
    • 2.9 V to 18 V input voltage
    • Output voltage adjustable from 0.6 V to 16 V
    • 250 kHz switching frequency, programmable up to 1 MHz
    • Internal soft-start and inhibit
    • Low dropout operation: 100% duty cycle
    • Zero-load current operation
    • Overcurrent and thermal protection
    • VFQFPN8 (3 x 3 mm) package

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
Board production status
販売代理店からオーダー
STからオーダー
STEVAL-ISA154V1 L5980
Active
47.0 1 EAR99 ITALY - 在庫チェック

Distributor availability ofSTEVAL-ISA154V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 1 1 Order Now

代理店レポートによる在庫データ: 2019-12-14

代理店名

DIGIKEY

在庫

1

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-14

購入

STEVAL-ISA154V1

コア製品

L5980

製品ステータス

Active

Unit Price (US$)

47.0*

Distributor availability ofSTEVAL-ISA154V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 1 1 Order Now

代理店レポートによる在庫データ: 2019-12-14

代理店名

DIGIKEY

在庫

1

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-14

Unit Price (US$)

47

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB2305
      0.7 A step-down switching regulator evaluation board based on the L5980
      1.0
      86.1 KB
      PDF
      DB2305

      0.7 A step-down switching regulator evaluation board based on the L5980

ハードウェアリソース

    • 概要 Version Size Action
      STEVAL-ISA154V1 gerber files 1.0
      113.02 KB
      ZIP

      STEVAL-ISA154V1 gerber files

    • 概要 Version Size Action
      STEVAL-ISA154V1 BOM 1.0
      40.35 KB
      PDF

      STEVAL-ISA154V1 BOM

    • 概要 Version Size Action
      STEVAL-ISA154V1 schematics 1.0
      78.66 KB
      PDF

      STEVAL-ISA154V1 schematics

関連資料

    • 概要 Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      715.75 KB
      PDF

      eDesignSuite-The smart way to design your application

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant Material Declaration**
STEVAL-ISA154V1
Active
CARD インダストリアル Ecopack2 -

STEVAL-ISA154V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
