製品概要
概要

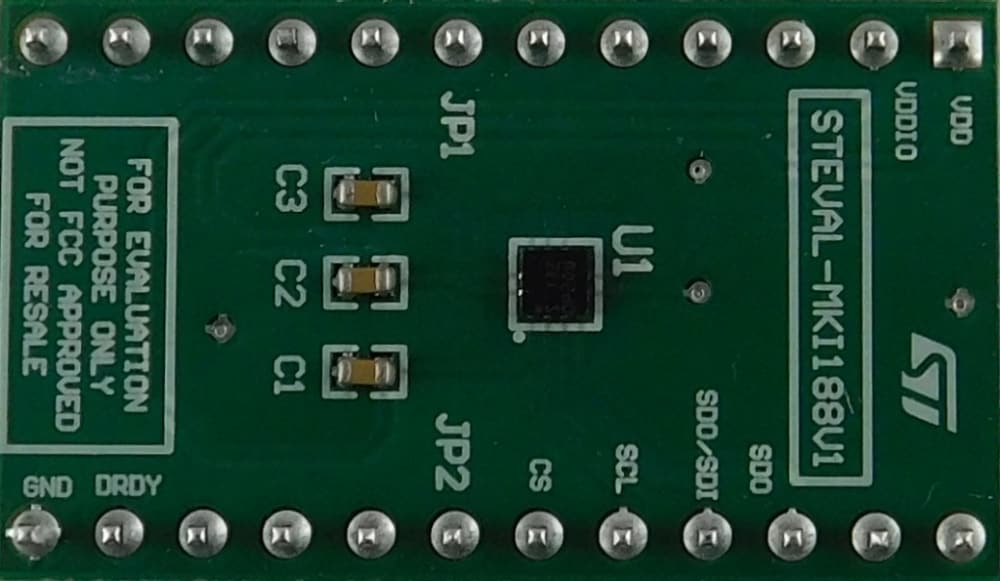

The STEVAL-MKI188V1 adapter board is designed to facilitate the evaluation of MEMS devices in the L20G20IS product family. The board offers an effective solution for fast system prototyping and device evaluation directly in the user’s own application.
The STEVAL-MKI188V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete L20G20IS pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
-
特徴
- Complete L20G20IS pinout for a standard DIL 24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
推奨コンテンツ
すべてのリソース
| タイトル | バージョン | 更新日 |
|---|
Board Manufacturing Specifications (1)
| タイトル | バージョン | 更新日 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 12 Mar 2018 | 12 Mar 2018 |
BOM (1)
| タイトル | バージョン | 更新日 | |||
|---|---|---|---|---|---|
| 1.0 | 12 Mar 2018 | 12 Mar 2018 |
Schematic Pack (1)
| タイトル | バージョン | 更新日 | |||
|---|---|---|---|---|---|
| 1.0 | 12 Mar 2018 | 12 Mar 2018 |
