製品概要

概要

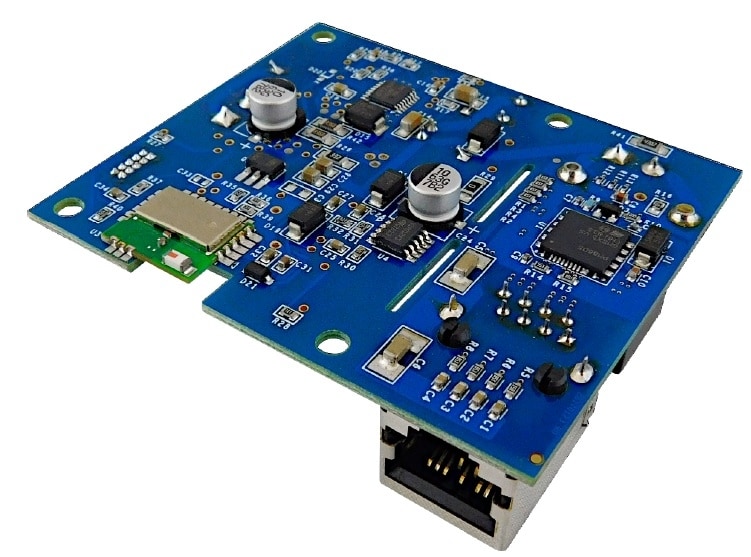

The STEVAL–POEL45W1 Power over Ethernet (PoE) powered LED driver reference design delivers a power output of 45 W and dims LEDs down to 1% of the maximum brightness without any flicker. The solution supports remote dimming control via Bluetooth with the PoE_Lighting Android application (available on Google Play).

You can use this reference design to develop complete indoor network-powered lighting solutions with IP-based Powered Devices (PDs), without additional AC power infrastructure, and extend the functionality to include remote data management via existing LAN networks.
The reference design features a highly integrated PM8805 IEEE802.3bt-compliant Powered Device (PD) PoE interface, a high efficiency LED6000 LED driver able to source up to 3 A_DC current, and a certified SPBTLE-1S Bluetooth Low Energy module, compliant with BT specifications v4.2 and BQE qualified.
For new designs, the BLUENRG-M2SA module for Bluetooth^® low energy v5.2 is recommended.
SPBTLE-1S and BLUENRG-M2SA are pin to pin compatible.
The STSW-POEL45FW board firmware is programmed via the STSW-BNRG1STLINK utility.

特徴
PoE-PD IEEE 802.3af/at/bt compliant

Constant current output, working in buck topology

Output current – 1.4 A with < 0.05% current regulation

Number of LEDs connected at output: 6 – 11 white LEDs (3.3 V each)

Wireless ON/OFF and dimming control with PoE_Lighting Android application

Digital dimming with 1% resolution

LED driver input voltage range 37 – 57 V_DC
Peak efficiency at maximum load > 95%

Low standby power consumption < 100 mW

Comprehensive set of protections:

open/no-load circuit protection

short/overload circuit protection

RoHS compliant

WEEE compliant
続きを読む一部を表示
