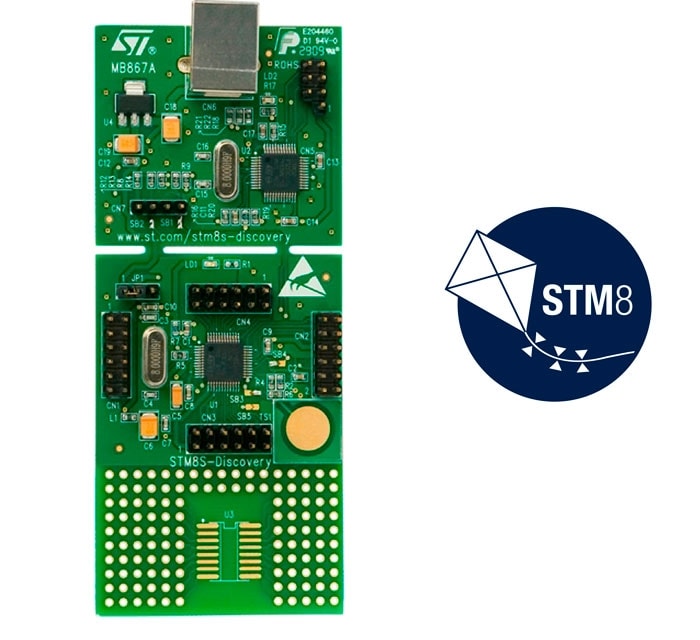

The STM8S-DISCOVERY helps you to discover the STM8S features and to develop and share your own application.
Even though the STM8S-DISCOVERY is built around an STM8S105C6T6, it allows evaluation of the main features of all the STM8S Access line MCUs. It includes an embedded debugger ST-Link, and a touch sensing button.
The STM8S-DISCOVERY simply plugs into a PC through a standard USB cable. Numerous applications are available from the STM8S-DISCOVERY web page.
Key Features
- STM8S105C6T6 microcontroller, 32 KB Flash, 2 KB RAM, 1 KB EEPROM
- Powered by USB cable between PC and STM8S-DISCOVERY
- Selectable power of 5 V or 3.3 V
- Touch sensing button
- User LED
- Extension header for all I/Os
- Wrapping area for users own application
- Embedded ST-Link
- USB interface for programming and debugging
- SWIM debug support
画像
リソース
技術文書
製品スペック
| Description | バージョン | サイズ | |
|---|---|---|---|
|
DB1069: STM8S access Discovery | 1.2 | 91 KB |
アプリケーションノート
| Description | バージョン | サイズ | |
|---|---|---|---|
|
|
AN3277: Adjustable buzzer frequency using STM8S-DISCOVERY touch sensing key | 1.7 | 183 KB |
|
|
AN3260: Building a thermometer using the STM8S-DISCOVERY | 1.4 | 291 KB |
|
|
AN3255: Building an RFID short-range reader using the STM8S-DISCOVERY | 1.4 | 428 KB |
|
|
AN3280: Displaying variable voltage on a bar of LEDs using STM8S-DISCOVERY | 1.3 | 148 KB |
|
|
AN3332: Generating PWM signals using STM8S-DISCOVERY | 1.4 | 84 KB |
|
|
AN3265: Handling hardware and software failures with the STM8S-DISCOVERY | 1.3 | 191 KB |
|
|
AN3259: RS232 communications with a terminal using the STM8S-DISCOVERY | 1.2 | 299 KB |
ユーザマニュアル
| Description | バージョン | サイズ | |
|---|---|---|---|
|
|
UM0834: Developing and debugging your STM8S-DISCOVERY application code | 3.2 | 2 MB |
|
|
UM1494: STEVAL-IHT007V1, extension board with AC switches for the STM8S-DISCOVERY kit | 1.0 | 717 KB |
|
|
UM0817: STM8S-DISCOVERY | 3.2 | 385 KB |
ハードウェアリソース
Board Manufacturing Specifications
| Description | バージョン | サイズ | |
|---|---|---|---|
|
STM8S-DISCOVERY Gerber files | 1.0 | 108 KB |
Bill of Materials
| Description | バージョン | サイズ | |
|---|---|---|---|
|
|
STM8S-DISCOVERY BOM | 1.0 | 9 KB |
Schematic Pack
| Description | バージョン | サイズ | |
|---|---|---|---|
|
|
STM8S-DISCOVERY schematics | 1.0 | 26 KB |
法務
ライセンス契約
| Description | バージョン | サイズ | |
|---|---|---|---|
|
|
Evaluation products license agreement | 1.4 | 128 KB |
|
|
Open Reference Material License Agreement v5 | 42 KB |
