製品概要
概要
The STMPE812 is a 4-wire resistive touchscreen controller with 4-bit port expander integrated. The touchscreen controller is designed to be fully autonomous, requiring only minimal CPU intervention for sampling, filtering and pre-processing operations.
-
特徴
- 4 GPIOs (8 mA drive, 12 mA sink at 3.3 V)
- 1 additional, general purpose 12-bit ADC
- Operating voltage 1.65 - 3.6 V
- Integrated 4-wire touchscreen controller, pen-down/real-time mode, fully-autonomous
- 1 PWM controller
- Auto-hibernation and low power
- Typ 0.5 μA in Hibernation mode
- Typ 100 μA in Active mode
- Interrupt output pin (optional)
- Reset input pin (optional)
- Wake-up feature on each port configured as GPIO input
- I2C interface
- 8 kV HBM, 1 kV CDM ESD protection on X+/X-/Y+/Y-
- 2 kV HBM, 250 V CDM ESD protection on all other pins

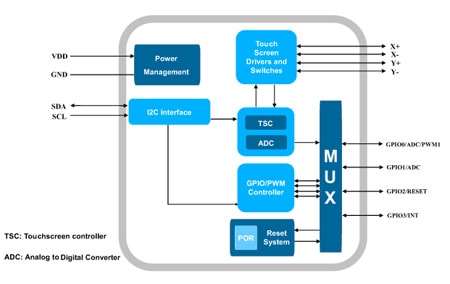

回路ダイアグラム
