STSW-IFAPGUI

量産中
Design Win

Graphical user interface for the industrial IPS and IO-Link transceiver evaluation boards based on STM32 Nucleo

ソフトウェア入手 データブリーフのダウンロード

製品概要

概要

The STSW-IFAPGUI graphical user interface is designed to facilitate the control of the industrial IPS expansion boards for STM32 Nucleo.

The common software engine embedded in the STSW-IFAPGUI lets you control different applications with the same GUI.

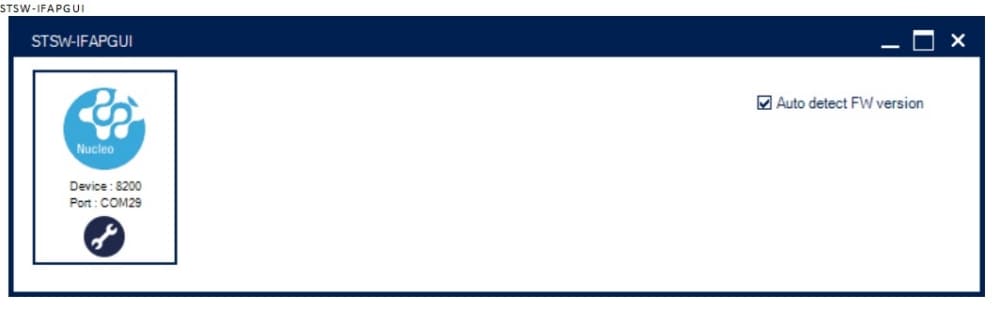

The automatic detection feature communicates with the firmware that runs on the STM32 Nucleo development board, which is connected via USB to a laptop or PC, and then opens the control window of the detected device.

The GUI is available free of charge on www.st.com.

  • 特徴

    • Automatic identification of firmware version and application board
    • Support for intelligent power switch (IPS) expansion boards
      • X-NUCLEO-OUT01A2
      • X-NUCLEO-OUT02A1
      • X-NUCLEO-OUT03A1, STDES-OUT03DO8
      • X-NUCLEO-OUT04A1, STDES-OUT04DO8
      • X-NUCLEO-OUT05A1, STDES-OUT05DO4
      • X-NUCLEO-OUT06A1, STDES-OUT06DO4
      • X-NUCLEO-OUT08A1
      • X-NUCLEO-OUT09A1
      • X-NUCLEO-OUT10A1
      • X-NUCLEO-OUT11A1
      • X-NUCLEO-OUT12A1
      • X-NUCLEO-OUT13A1
      • X-NUCLEO-OUT14A1
      • X-NUCLEO-OUT15A1
      • X-NUCLEO-OUT19A1
    • Control of the expansion board from a PC/laptop via USB cable and STM32 Nucleo development board USART interface

ソフトウェア入手

All tools & software

    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      STSW-OUT02

      量産中

      Demonstration firmware for NUCLEO-F401RE and NUCLEO-F446RE enabling STSW-IFAPGUI on X-NUCLEO-OUT02A1 expansion board

      評価ツール用ソフトウェア ST
      STSW-OUT02

      概要:

      Demonstration firmware for NUCLEO-F401RE and NUCLEO-F446RE enabling STSW-IFAPGUI on X-NUCLEO-OUT02A1 expansion board

      STSW-OUT11F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT11A1 and X-NUCLEO-OUT13A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT11F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT11A1 and X-NUCLEO-OUT13A1 expansion boards

      STSW-OUT11G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT11A1 and X-NUCLEO-OUT13A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT11G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT11A1 and X-NUCLEO-OUT13A1 expansion boards

      STSW-OUT12F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT12A1 and X-NUCLEO-OUT14A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT12F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT12A1 and X-NUCLEO-OUT14A1 expansion boards

      STSW-OUT12G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT12A1 and X-NUCLEO-OUT14A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT12G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT12A1 and X-NUCLEO-OUT14A1 expansion boards

      STSW-OUT15F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT15A1 expansion board

      評価ツール用ソフトウェア ST
      STSW-OUT15F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT15A1 expansion board

      STSW-OUT15G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT15A1 expansion board

      評価ツール用ソフトウェア ST
      STSW-OUT15G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT15A1 expansion board

      STSW-OUT1F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT01A2 expansion board

      評価ツール用ソフトウェア ST
      STSW-OUT1F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT01A2 expansion board

      STSW-OUT1G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT01A2 expansion board

      評価ツール用ソフトウェア ST
      STSW-OUT1G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT01A2 expansion board

      STSW-OUT3D8F4

      量産中

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on STDES-OUT03DO8 and STDES-OUT04DO8 digital output modules

      評価ツール用ソフトウェア ST
      STSW-OUT3D8F4

      概要:

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on STDES-OUT03DO8 and STDES-OUT04DO8 digital output modules

      STSW-OUT3D8G4

      量産中

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on STDES-OUT03DO8 and STDES-OUT04DO8 digital output modules

      評価ツール用ソフトウェア ST
      STSW-OUT3D8G4

      概要:

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on STDES-OUT03DO8 and STDES-OUT04DO8 digital output modules

      STSW-OUT3F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT03A1 and X-NUCLEO-OUT04A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT3F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT03A1 and X-NUCLEO-OUT04A1 expansion boards

      STSW-OUT3G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT03A1 and X-NUCLEO-OUT04A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT3G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT03A1 and X-NUCLEO-OUT04A1 expansion boards

      STSW-OUT5D4F4

      量産中

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on STDESOUT05DO4 and STDES-OUT06DO4 digital output modules

      評価ツール用ソフトウェア ST
      STSW-OUT5D4F4

      概要:

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on STDESOUT05DO4 and STDES-OUT06DO4 digital output modules

      STSW-OUT5D4G4

      量産中

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on STDES-OUT05DO4 and STDES-OUT06DO4 digital output modules

      評価ツール用ソフトウェア ST
      STSW-OUT5D4G4

      概要:

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on STDES-OUT05DO4 and STDES-OUT06DO4 digital output modules

      STSW-OUT5F4

      量産中

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT05A1 and X-NUCLEO-OUT06A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT5F4

      概要:

      Evaluation firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT05A1 and X-NUCLEO-OUT06A1 expansion boards

      STSW-OUT5G4

      量産中

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT05A1 and X-NUCLEO-OUT06A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT5G4

      概要:

      Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT05A1 and X-NUCLEO-OUT06A1 expansion boards

      STSW-OUT8F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT8F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 expansion boards

      STSW-OUT8G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT8G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT08A1 and X-NUCLEO-OUT10A1 expansion boards

      STSW-OUT9F4

      量産中

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT09A1 and X-NUCLEO-OUT19A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT9F4

      概要:

      Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT09A1 and X-NUCLEO-OUT19A1 expansion boards

      STSW-OUT9G4

      量産中

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT09A1 and X-NUCLEO-OUT19A1 expansion boards

      評価ツール用ソフトウェア ST
      STSW-OUT9G4

      概要:

      Demonstration firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on X-NUCLEO-OUT09A1 and X-NUCLEO-OUT19A1 expansion boards
