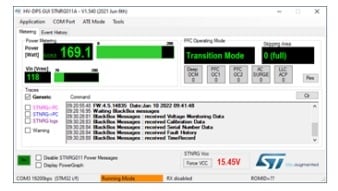

  • The STSW-STNRG011GUI graphical user interface is used to monitor and configure the mains parameters of the STNRG011 PFC/LLC controller.

    It allows monitoring the controllore key parameters in real-time (instantaneous power, PFC mode of operation, input voltage, Vcc).
    The STSW-STNRG011GUI provides also an easy and intuitive way of tuning theSTNRG011 NVM parameters (each of them listed in the GUI).
    To facilitate supply designers' activity, the STSW-STNRG011GUI embeds a comprehensive wizard to calibrate the PFC parameters. The calibration can be performed automatically (assuming AC source and DC load have GPIB remote capabilities) or semi-automatically (the GUI prompts the user for actions on the instruments).
    In case an optional E²P is available in the design, the STSW-STNRG011GUI is able to decode Faults and Event history messages stored in the E²P memory. It can program also the E²P memory with a firmware patch if needed.
    The STSW-STNRG011GUI requires an STEVAL-PCC020V1 interface board connected to an STNRG011 controller and a PC via USB.
    The GUI is compatible with WindowsXP, Windows 7/8,10. No specific third-party software is needed.

    主な特徴

    • Real time monitoring of STNRG011 PFC & LLC parameters
    • Decoding of STNRG011 specific messages
    • Automated or semi-automated PFC calibration
    • Access to NVM parameters
    • Access to Fault and Event history
    • Access to optional E²P for specific patch upload
    • STEVAL-PCC020V1 interface board firmware upgrade through GUI

ソフトウェア入手

推奨コンテンツ

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 バージョン サイズ アクション
      DB3543
      Graphical user interface for the STEVAL-PCC020V1 USB to I²C/UART interface board for STNRG011
      1.0
      561.46 KB
      PDF
      DB3543

      Graphical user interface for the STEVAL-PCC020V1 USB to I²C/UART interface board for STNRG011
