  • The X-CUBE-ANALOG1 is an expansion software package for STM32Cube. The software runs on STMicroelectronics' STM32 microcontroller and is used for reading and configuring various analog functions such as instrumentation amplifier, current sensing, LED driver, photodiode/UV and window comparator operational amplifier drivers using the TSZ124, TSV734 and TSU104 devices, running on an STM32 microcontroller.

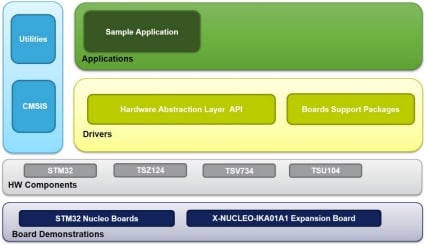

    The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers. It is compatible with the NUCLEO-F401RE, the NUCLEO-F103RB or the NUCLEO-L053R8 when plugged into the X-NUCLEO-IKA01A1 expansion board. The software comes with an example implementation to aid comprehension.

    主な特徴

    • Complete middleware to build applications such as instrumentation amplifier, current sensing (TSZ124), LED driver (TSV734), photodiode/UV and window comparator (TSU104)
    • Easy portability across different MCU families, thanks to STM32Cube
    • Transmit real-time voltage readings to a PC using serial communication
    • Free, user-friendly license terms
    • Example implementation available on X-NUCLEO-IKA01A1 when plugged into a NUCLEO-F401RE, NUCLEO-F103RB or NUCLEO-L053R8

ソフトウェア入手

開発環境

    • 製品型番

      Multifunctional expansion board based on operational amplifiers for STM32 Nucleo

ソフトウェア製品

    • 製品型番

      STM32Cube MCU Package for STM32 F1 series (HAL, Low-Layer APIs and CMSIS (CORE, DSP, RTOS), USB, TCP/IP, File system, RTOS, Graphic - coming with examples running on ST boards: STM32 Nucleo, Discovery kits and Evaluation boards)

      STM32Cube MCU Package for STM32F4 series (HAL, Low-Layer APIs and CMSIS (CORE, DSP, RTOS), USB, TCP/IP, File system, RTOS, Graphic - coming with examples running on ST boards: STM32 Nucleo, Discovery kits and Evaluation boards)

      STM32Cube MCU Package for STM32L0 series (HAL, Low-Layer APIs and CMSIS (CORE, DSP, RTOS), USB, File system, RTOS, Touch Sensing - coming with examples running on ST boards: STM32 Nucleo, Discovery kits and Evaluation boards)

00 Files selected for download

技術文書

    • Description バージョン サイズ アクション
      DB2678
      Multifunctional software expansion for STM32Cube
      2.0
      213.94 KB
      PDF
      DB2678

      Multifunctional software expansion for STM32Cube

    • Description バージョン サイズ アクション
      UM2312
      Development checklist for STM32Cube Expansion Packages
      1.0
      283.23 KB
      PDF
      UM2285
      Development guidelines for STM32Cube Expansion Packages
      1.0
      485.46 KB
      PDF
      UM1950
      Getting started with the X-CUBE-ANALOG1 multifunctional software expansion for STM32Cube
      2.0
      1.15 MB
      PDF
      UM2312

      Development checklist for STM32Cube Expansion Packages

      UM2285

      Development guidelines for STM32Cube Expansion Packages

      UM1950

      Getting started with the X-CUBE-ANALOG1 multifunctional software expansion for STM32Cube
