Intelligent Power Switch software for STM32, expansion for STM32Cube

ソフトウェア入手 データブリーフのダウンロード

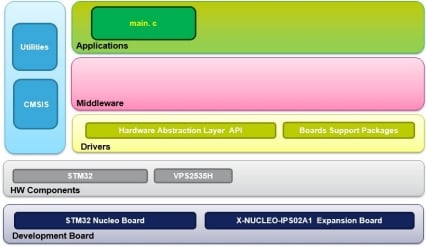

This software is to manage Intelligent Power Switch based on VPS2535H allowing to control the 2 channels output and measure currents on connected load. It is built on top of STM32Cube software technology, to ease portable across different STM32 microcontrollers.

The software comes with examples of implementation of such drivers, running on X-NUCLEO-IPS02A1 plugged on top of NUCLEO-F401RE or NUCLEO-L053R8.

  • 特徴

    • Complete middleware to build applications using Intelligent Power Switch (VPS2535H)
    • Easy portability across different MCU families thanks to STM32Cube
    • Sample application to transmit real time current data measurement to a PC
    • PC-based application (Microsoft Windows) to print on terminal current in several conditions
    • Free user-friendly license terms
    • Examples implementation available on board X-NUCLEO-IPS02A1 plugged on top of one NUCLEO-F401RE or NUCLEO-L053R8.
