製品概要
主な利点
多様なレンズオプション
幅広い評価用カメラモジュールから、あなたに最適なレンズをお選びください。これらのモジュールは、すべて一貫したコネクタとピン配置を備えています。
生産へのシームレスな移行
STパートナーの生産ユニットからそのまま購入するか、レンズのカスタマイズを選択して、テストから生産へとスムーズに拡大できます。
概要

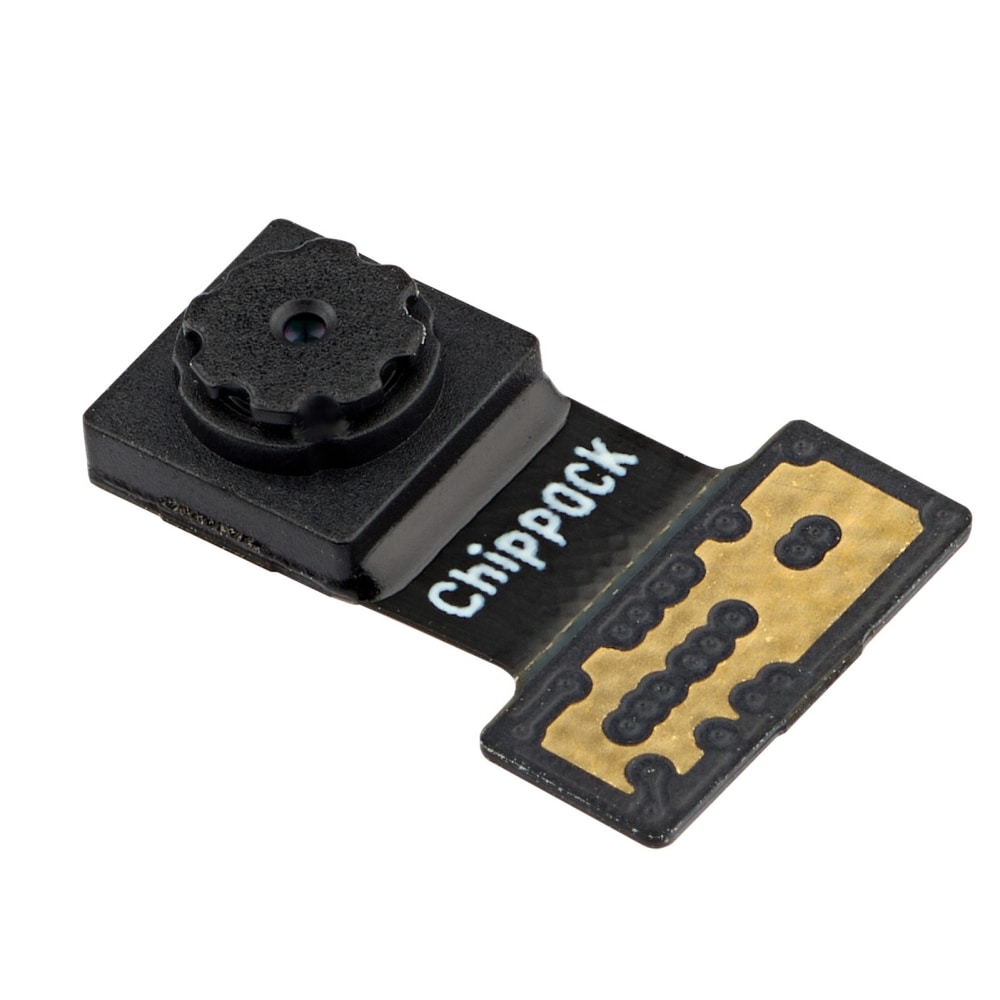

The CAM-65G4 promodules are a full range of sample camera modules made for a seamless evaluation and integration of the VD65G4 ultralow-power 800x700 color image sensor. These ready-to-use vision extensions integrate VD65G4 image sensor, lens holder, lens, and plug-and-play flex connection in a tiny format down to 5.0 mm square.
The CAM-65G4 line leverages the complete toolbox of on-chip features of the VD65G4 image sensor embedded, such as autowake up, background removal, image difference, and more. Multiple GPIOs enable users to synchronize the modules with triggers and illumination. It offers versatile output interfaces: single-lane MIPI CSI-2 for high-frame-rate capture and fast, high-quality imaging on embedded platforms or I3C/SPI for simple low-power microcontroller connectivity.
Multiple promodule references are available, featuring various lenses to best match the needs of every application in terms of optical setup and mechanical constraints. All camera modules are equipped with the same FPC-to-board connector and pinout. This plug-and-play architecture allows users to change promodule instantly, and reuse the same setup with different lenses, color options, and even different image sensors in the ST BrightSense portfolio.
CAM-65G4 promodules can be tested and integrated on computers or embedded processing boards using hardware and software tools from STMicroelectronics. The compatible EVK Main and P-Board hardware kits enable straight connection to PC and embedded processing platforms respectively. Evaluation GUI software and Linux drivers are available for download from the Imaging Software section of the website.
-
機能一覧
- “Promodules”: turnkey camera modules for evaluation:
- Including VD65G4 image sensor, lens holder, lens, and plug-and-play flex connection.
- Lens focused, glued, and tested in a cleanroom environment using specialized equipment.
- Small footprint down to 5.0 mm square, with smaller dimension achievable as a customized solution from partner camera module integrators.
- High lens flexibility:
- General-purpose lens enabling compact module design (80° DFOV, IR-cut filter)
- Ultra-wide-angle lens for maximizing the field of view (160° DFOV, IR-cut filter)
- Plug-and-play connector to change promodules at any time:
- FPC-to-board 30-pin connector.
- Same connector for all ST promodules.
- Ready for evaluation and integration:
- On a computer with a USB output using the EVK Main hardware tool and the Evaluation GUI free software.
- On embedded processing platforms with a MIPI CSI-2 output using the P-Board hardware tool and free Linux software tools.
- “Promodules”: turnkey camera modules for evaluation:
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHSコンプライアンスグレード | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| CAM-65G4-080VIS | Preview 製品は設計段階にあります。 | CARD | Industrial | Ecopack1 | - | - | - | |
CAM-65G4-080VIS
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
