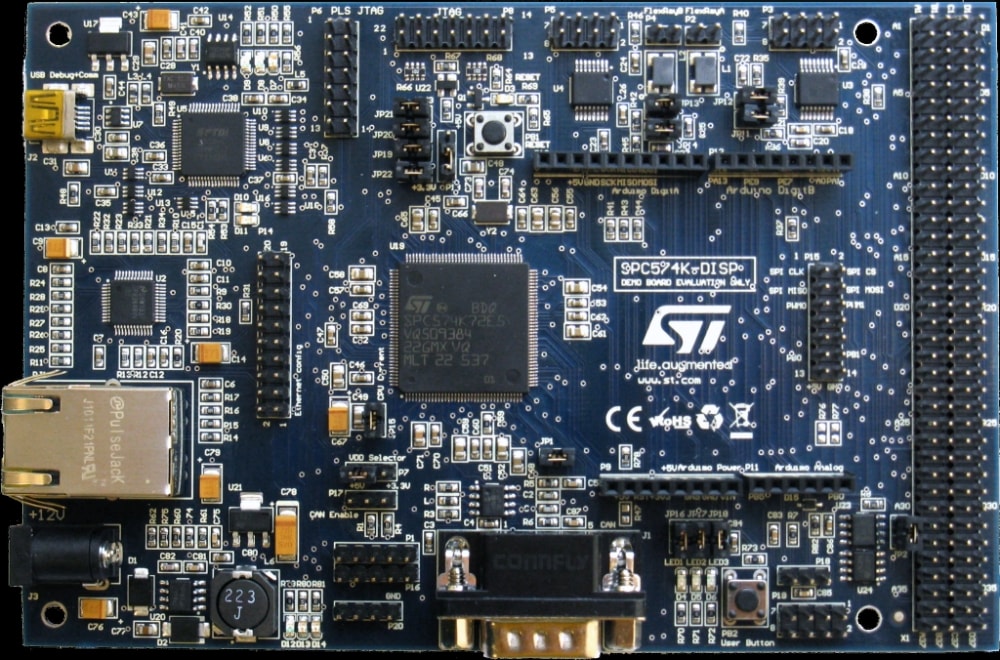

  • The SPC57K-Discovery board helps you to discover SPC57K line Power Architecture®Microcontrollers with full access to CPUs, I/O signals and peripherals such as CAN, UART, JTAG, K-Line, LIN at budget price.

    Free ready-to-run application firmware examples are available inside SPC5Studio on www.st.com to support quick evaluation and development.
    SPC5studio includes visual configurable code generation engine, board support package (BSP), startup routines, interrupt services, free RTOS (optional) and a full set of low level drivers.
    SPC5Studio includes Hightec GNU "C" compiler, with a 30-days full free trial license. SPC5Studio is available for free download.
    The MCUs SPC57K family targets automotive powertrain controller applications for four-cylinder gasoline and diesel engines, chassis control applications, transmission control applications, as well as low-end hybrid applications. It is designed to address all Automotive Applications but as well industrial safety oriented applications.
    The SPC57K devices featured specific functions to make automotive applications with integrity level up to ASIL D of ISO 26262.
    An E2E Community is available on ST WEB

    主な特徴

    • Microcontroller SPC574K72E5
      • Two main 32-bit Power Architecture CPU's core 200z4 running in lockstep
      • One 32-bit Power Architecture CPU's core I/O processor core e200z2
      • 2624 KB on-chip flash memory
    • On-board USB-JTAG PLS debugger and HW selection mode to use a stand-alone JTAG debuggers.
    • Board power supply through external +12V PSU.
    • Communication interfaces
      • JTAG interface (2x7 male 100mil)
      • USB port (mini -B)"CAN with DB9 male connector and CAN FD transceiver."FlexRay
      • ETHERNET port
      • 40 MHz crystal.
      • Reset button.
      • User push button and 3 user LEDs
      • Extension headers (4x37 pin - 100 mil) for all device pins and for quick connection to prototyping and evaluation boards, additional modules and evaluation probing.
      • Board size 150 x 100mm.

サンプル & 購入

製品型番
製品ステータス
概算価格(USS)
Quantity
Specific features
ECCN (US)
Country of Origin
WEEE Compliant
販売代理店からオーダー
STからオーダー
SPC574K-DISP
Active
188 1 - EAR99 - -

販売代理店に在庫がない場合は、STのセールスオフィスまでお問い合わせください

SPC574K-DISP

製品ステータス

Active

Unit Price (US$)

188

Unit Price (US$)

188.0*

Quantity

1

Specific features

-

ECCN (US)

EAR99

Country of Origin

-

WEEE Compliant

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

関連製品

車載用マイクロコントローラ

開発ツール・ハードウェア

    • 製品型番

      Code Generator, Quick resources configurator and Eclipse development environment for SPC5 MCUs

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB3144
      SPC574K-DISP: Discovery Evaluation Board
      2.0
      163.55 KB
      PDF
      DB3144

      SPC574K-DISP: Discovery Evaluation Board

    • 概要 Version Size Action
      UM2155
      SPC574K-DISP Discovery Board
      1.0
      1.46 MB
      PDF
      UM2661
      SPC58XXADPT100S
      1.0
      1.01 MB
      PDF
      UM2155

      SPC574K-DISP Discovery Board

      UM2661

      SPC58XXADPT100S

Hardware Resources

    • 概要 Version Size Action
      SPC574K-DISP Schematic Diagram pdf 1.0
      2.35 MB
      PDF

      SPC574K-DISP Schematic Diagram pdf

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス RoHSコンプライアンスグレード 材料宣誓書**
SPC574K-DISP
Active
Ecopack1

SPC574K-DISP

Package:

Ecopack1

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack1

(**) st.comで提供している材料宣誓書は、パッケージ・ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
