製品概要
概要

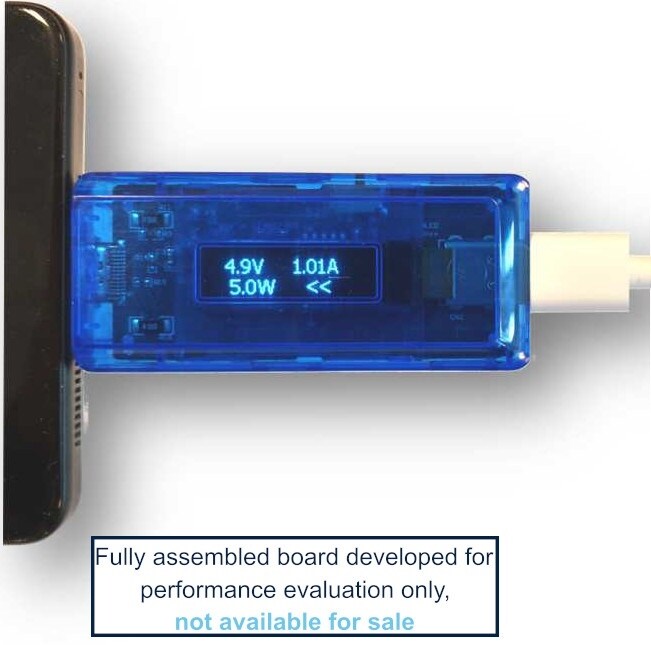

The STDES-USBPWRMT1 is a measurement device that can be inserted between a USB Type-C™ power source and a USB Type-C™ power sink device.
The STDES-USBPWRMT1 power meter includes a USB Type-C™ receptacle connector on one side and a USB Type-C™ plug on the other side.
The power meter embeds a shunt resistor that is inserted on the USB Vbus lines and enables the measurement of the current flowing through the dongle.
All data lines are carefully routed from the input of the power meter to the output, so that transmitted data are affected as little as possible by the insertion of the power meter.
The bright display provides an accurate information of the USB port voltage, current, resulting power, and current direction.
This type of information can help the user to understand which charger is more efficient, in order to charge a device faster, or simply to visualize the power transfer from one device to another.
-
All features
- Input voltage range: 5 to 20 V
- Input current range: 0 to 5 A
- Bidirectional current measurement
- USB Type-C™ port power calculation
- Pass-through for USB data lines
- Allows understanding the charger power capability
- Allows viewing the USB sink/source roles
推奨コンテンツ
すべてのリソース
| Resource title | Version | Latest update | Actions | Details | ダウンロード |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 20 Jun 2022 | 20 Jun 2022 |
Schematic Pack (1)
| Resource title | Version | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 20 Jun 2022 | 20 Jun 2022 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHSコンプライアンスグレード | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STDES-USBPWRMT1 | Active 交換品交換品 | CARD | Industrial | - | Yes | - | - | |
STDES-USBPWRMT1
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
