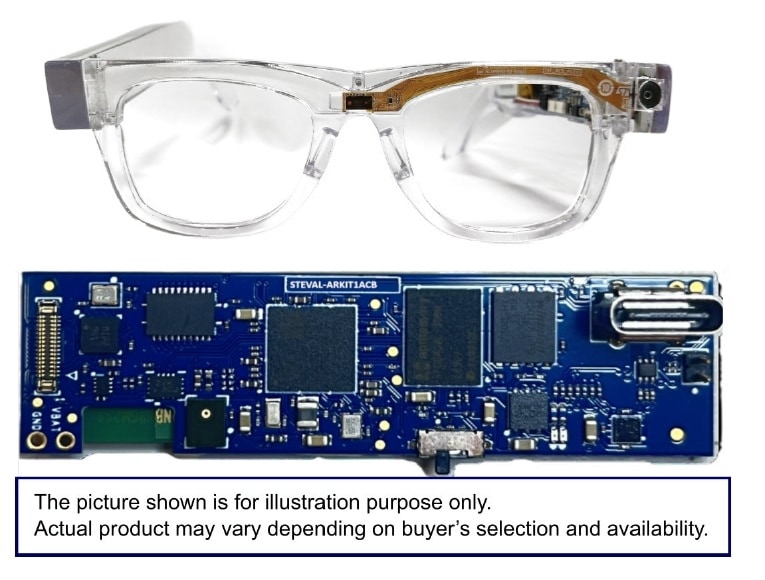

STEVAL-ARKIT1CB is a sensor hub based augmented reality evaluation kit, designed as a platform for the development of augmented reality-based applications. It contains two boards: STEVAL-ARKIT1ACB and STEVAL-ARKIT1BCB. STEVAL-ARKIT1ACB contains STM32H725AG, inertial measurement unit (IMU), magnetometer, and environment sensors, which gives the board capability to collect MEMS sensors data for application like head orientation and motion sensing.
It has also a tiny, clever, low power, 0.56 megapixels, monochrome global shutter image sensor used for AR applications like QR and bar code scanning. The Qvar sensor on the board is connected via FFC cable, and it gives the capability to detect the static charges around the 3D glass frame used for sliding, scrolling, and tap applications.
STM32H725AG can run Edge AI applications such as head and hand gestures. It also contains a Bluetooth® LE module, which facilitates seamless wireless communication, enabling the control using a mobile interface.
STEVAL-ARKIT1BCB is an FPC board containing time-of-flight and an ambient light sensor, which points outwards when fitted in the 3D glass case, and can be used for Edge AI hand gesture recognition.
-
All features
- Sensor hub based augmented reality platform
- 6-axis IMU sensor
- Magnetometer for position accuracy
- Qvar electrodes for static charge detection
- Multizone ToF and multispectral ALS sensor on FPC board
- Monochrome camera module
- Based on high-performance STM32H7 MCU
- On board external flash and PSRAMs
- Audio signal sensing using a low-distortion digital microphone
- Bluetooth® LE connectivity using certified BlueNRG-M2 module
- Wireless charging
- USB Type-C® for power and charging
- LEDs for power and charging indication
- 0.5 mm pitch FFC cable for debugging
- Application SDK and examples for AI and sensor hub augmented reality use cases
- Companion smartphone app to control and monitor using phone
