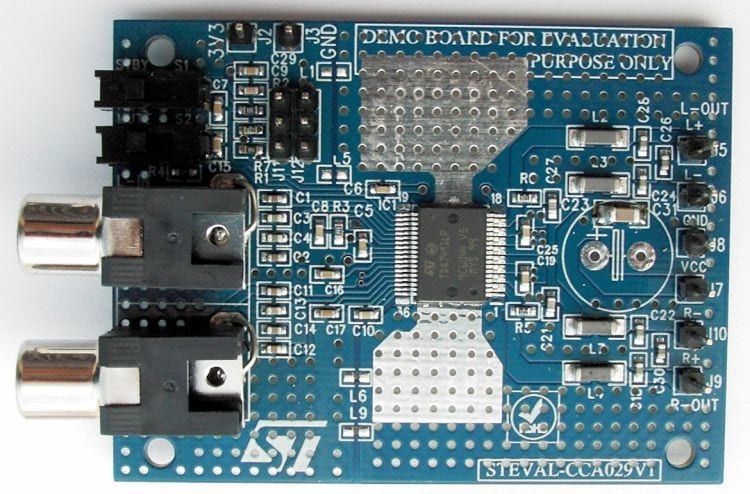

  • The STEVAL-CCA029V1 demonstration board is designed for the evaluation of the TDA7491LP dual BTL class-D audio amplifier.

    Due to its high efficiency, the device, assembled in the PSSO36 (slug-down) package, is capable of dissipating heat without any heatsink. Jumpers on the board allow the configuration of the amplifier in order to verify all the features as single-ended or differential inputs, fixed gain settings. Microswitches are also provided to enable the standby and mute functions.

    主な特徴

    • 5 W + 5 W continuous output power at THD = 10%, RL = 8 Ω, VCC = 9 V
    • 5 W + 5 W continuous output power at THD = 10%, RL = 4 Ω, VCC = 6.5 V
    • Power supply voltage range: 5 V to 14 V
    • Number of channels: 2 BTL (bridge tied load) stereo
    • Load impedance: 4 Ω to 8 Ω
    • Gain settings: 20 dB, 26 dB, 30 dB, 32 dB
    • Undervoltage protection (UVP): 4 V
    • External synchronization
    • RoHS compliant

サンプル & 購入

製品型番
Marketing Status
Budgetary Price (US$)*
数量
Core Product
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-CCA029V1
Active
82 1 TDA7491LP EAR99 ITALY No availability of distributors reported, please contact our sales office

STEVAL-CCA029V1

Marketing Status

アクティブ

Unit Price (US$)

82

Unit Price (US$)

82.0*

数量

1

Core Product

TDA7491LP

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

00 Files selected for download

技術文書

    • Description バージョン サイズ アクション
      DB1575
      5 W + 5 W class-D audio amplifier demonstration board based on the TDA7491LP
      1.0
      328.49 KB
      PDF
      DB1575

      5 W + 5 W class-D audio amplifier demonstration board based on the TDA7491LP

    • Description バージョン サイズ アクション
      AN3956
      5 W + 5 W dual BTL class-D audio amplifier demonstration board based on the TDA7491LP
      1.0
      1.45 MB
      PDF
      AN3956

      5 W + 5 W dual BTL class-D audio amplifier demonstration board based on the TDA7491LP

    • Description バージョン サイズ アクション
      UM2447
      Evaluation boards for FDA803D and FDA903D power amplifiers
      1.0
      3.02 MB
      PDF
      UM2447

      Evaluation boards for FDA803D and FDA903D power amplifiers

ハードウェアリソース

    • Description バージョン サイズ アクション
      STEVAL-CCA029V1 gerber files 1.0
      81.1 KB
      ZIP

      STEVAL-CCA029V1 gerber files

    • Description バージョン サイズ アクション
      STEVAL-CCA029V1 BOM 1.0
      9.38 KB
      PDF

      STEVAL-CCA029V1 BOM

    • Description バージョン サイズ アクション
      STEVAL-CCA029V1 schematics 1.0
      64.09 KB
      PDF

      STEVAL-CCA029V1 schematics

法務

    • Description バージョン サイズ アクション
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 Marketing Status パッケージ Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-CCA029V1
Active
CARD インダストリアル Ecopack2 -

STEVAL-CCA029V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
