1 kW 3-phase motor control evaluation board featuring L6390 drivers and STGP10H60DF IGBT

Download databrief

This product is in stock in our e-store

Sample and buy
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products

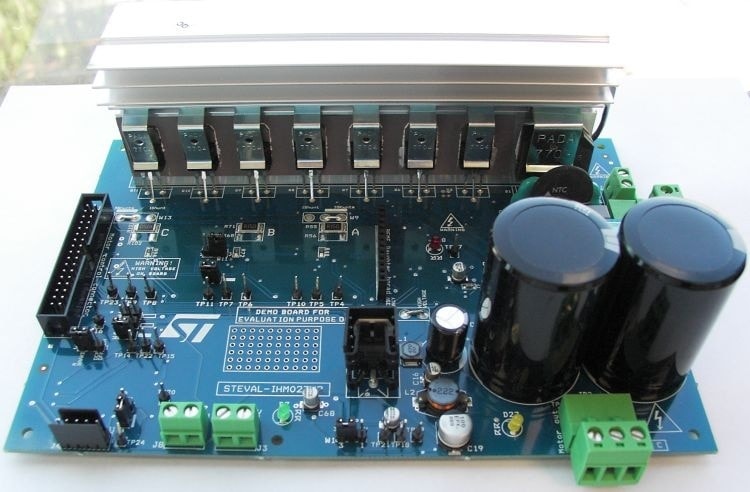

  • The STEVAL-IHM023V3 evaluation board implements a 1 kW three-phase motor control application featuring L6390 high and low-side driver and the STGP10H60DF IGBT. The evaluation board is an AC-DC inverter that generates a three-phase waveform for driving two- or three-phase motors such as induction motors or PMSM motors up to 1000 W, with or without sensors.

    The STEVAL-IHM023V3 is a universal, fully evaluated and populated design consisting of a three-phase inverter bridge based on STMicroelectronics’ 600 V IGBT STGP10H60DF in a TO-220 package mounted on a heatsink, and the L6390 high-voltage high-side and low-side driver featuring an integrated comparator for hardware protection features such as overcurrent and overtemperature. The driver also integrates an operational amplifier suitable for advanced current sensing. Thanks to this advanced characteristic, the system achieves accurate and fast conditioning of the current feedback, addressing the typical requirements of field-oriented control (FOC). The board has been designed to be compatible with a single-phase mains, supplying from 90 VAC to 285 VAC or from 125 VDC to 400 VDC for DC voltage. With reconfiguration of the input sourcing, the board is suitable also for low-voltage DC applications up to 35 VDC.

    主な特徴

    • Minimum input voltage: 125 VDC or 90 VAC
    • Maximum input voltage: 400 VDC or 285 VAC
    • Input voltage range with applied input voltage doubler from 65 VAC to 145 VAC
    • Voltage range for low-voltage motor control applications from 18 VDC to 35 VDC
    • Possibility to use auxiliary +15 V supply voltage
    • Maximum output power for motors: up to 1 kW
    • Regenerative brake control
    • Input inrush limitation with bypass relay
    • + 15 V auxiliary power supply based on buck converter with VIPer16
    • IGBT power switch STGP10H60DF in a TO- 220 package - compatible with other ST IGBTs or power MOSFETs in the TO-220 package
    • Fully populated board design with test points and isolated plastic cover for safety
    • Motor control connector for interface with the STM3210B-EVAL board and other ST motor control dedicated kits
    • Tachometer input
    • Hall/encoder inputs
    • Possibility to connect BEMF daughterboard for sensorless six-step control of BLDC motors
    • PCB type and size:
      • PCB material: FR-4
      • Double-sided layout
      • Copper thickness: 60 μm
      • Total dimensions of board: 127 mm x 180 mm
    • RoHS compliant

サンプル & 購入

製品型番
Core Product
Marketing Status
Budgetary Price (US$)*
数量
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-IHM023V3 L6390; STGP10H60DF
Active
241.0 1 EAR99 ITALY Check Availability

Distributor availability ofSTEVAL-IHM023V3

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 6 1 Order Now
RS COMPONENTS EUROPE 4 1 Order Now
MOUSER WORLDWIDE 6 1 Order Now
Farnell Element14 EUROPE 8 1 Order Now

代理店レポートによる在庫データ: 2019-04-22

代理店名

DIGIKEY

在庫

6

Min.Order

1

地域

WORLDWIDE Order Now

RS COMPONENTS

在庫

4

Min.Order

1

地域

EUROPE Order Now

MOUSER

在庫

6

Min.Order

1

地域

WORLDWIDE Order Now

Farnell Element14

在庫

8

Min.Order

1

地域

EUROPE Order Now

代理店レポートによる在庫データ: 2019-04-22

Buy direct

STEVAL-IHM023V3

Core Product

L6390; STGP10H60DF

Marketing Status

アクティブ

Unit Price (US$)

241.0*

Distributor availability ofSTEVAL-IHM023V3

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 6 1 Order Now
RS COMPONENTS EUROPE 4 1 Order Now
MOUSER WORLDWIDE 6 1 Order Now
Farnell Element14 EUROPE 8 1 Order Now

代理店レポートによる在庫データ: 2019-04-22

代理店名

DIGIKEY

在庫

6

Min.Order

1

地域

WORLDWIDE Order Now

RS COMPONENTS

在庫

4

Min.Order

1

地域

EUROPE Order Now

MOUSER

在庫

6

Min.Order

1

地域

WORLDWIDE Order Now

Farnell Element14

在庫

8

Min.Order

1

地域

EUROPE Order Now

代理店レポートによる在庫データ: 2019-04-22

Unit Price (US$)

241

数量

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

関連アプリケーション

Home and Professional Appliances

Home, Building and City Automation

Industrial Power and Tools

Motor Control

ソフトウェア製品

    • 製品型番

      STM32 PMSM FOC Software Development Kit - MC library (UM1052)

00 Files selected for download

技術文書

    • Description バージョン サイズ アクション
      DB2444
      1 kW 3-phase motor control evaluation board featuring L6390 drivers and STGP10H60DF IGBT
      1.0
      650.93 KB
      PDF
      DB2444

      1 kW 3-phase motor control evaluation board featuring L6390 drivers and STGP10H60DF IGBT

    • Description バージョン サイズ アクション
      UM1823
      1 kW three-phase motor control evaluation board featuring L6390 drivers and STGP10H60DF IGBT
      1.0
      1.3 MB
      PDF
      UM1823

      1 kW three-phase motor control evaluation board featuring L6390 drivers and STGP10H60DF IGBT

ハードウェアリソース

    • Description バージョン サイズ アクション
      STEVAL-IHM023V3 gerber files 1.0
      735.38 KB
      ZIP

      STEVAL-IHM023V3 gerber files

    • Description バージョン サイズ アクション
      STEVAL-IHM023V3 BOM 1.0
      74.58 KB
      PDF

      STEVAL-IHM023V3 BOM

    • Description バージョン サイズ アクション
      STEVAL-IHM023V3 schematic 1.0
      448.58 KB
      PDF

      STEVAL-IHM023V3 schematic

Publications and Collaterals

    • Description バージョン サイズ アクション
      X-NUCLEO expansion boards motor control - Selection guide 1.2
      263.59 KB
      PDF

      X-NUCLEO expansion boards motor control - Selection guide

    • Description バージョン サイズ アクション
      スマート・インダストリ向け 製品 & ソリューション ガイド 3.1
      3.41 MB
      PDF

      スマート・インダストリ向け 製品 & ソリューション ガイド

法務

    • Description バージョン サイズ アクション
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 Marketing Status パッケージ Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-IHM023V3
Active
CARD インダストリアル Ecopack2 -

STEVAL-IHM023V3

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
