STEVAL-IME003V1

量産中
Design Win

STHV748 Ultrasound Pulser IC evaluation board

データブリーフのダウンロード
概要
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
はじめる
Partner products
Sales Briefcase

製品概要

概要

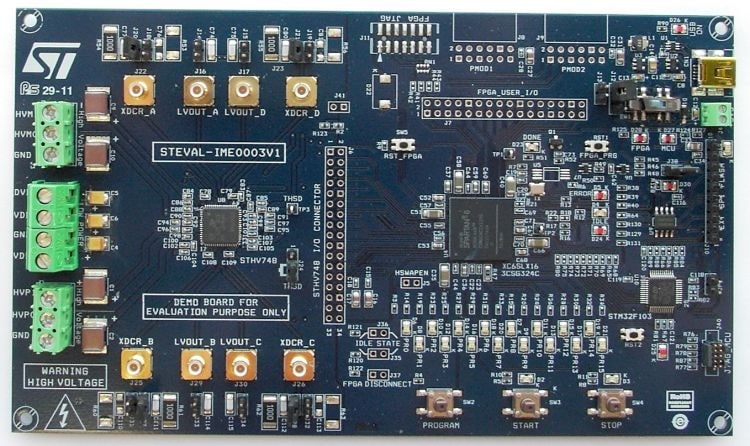

The STEVAL-IME003V1 evaluation board is designed around the STHV748 4-channel high voltage pulser, a state-of-the-art device designed for ultrasound imaging applications. The output waveforms can be displayed directly on an oscilloscope by connecting the scope probe to the relative BNCs. 16 preset waveforms are available to test the HV pulser under varying conditions.

  • 特徴

    • 4-channel outputs: high voltage and low voltage BNC connectors
    • Load simulator using signal equivalent circuits
    • Possibility to set up own load simulator
    • 16 preset waveforms
    • USB connector to connect STM32 with PC and supply power to it
    • 4 MB serial Flash memory to host FPGA code and waveforms
    • Memory expansion connector to add external serial Flash
    • Connectors to supply high voltage and low voltage to the STHV748 output stage
    • LEDs to monitor the power management stage
    • Human machine interface to select, start and stop the generation of the preset waveforms
    • 25 LEDs to monitor board behavior
    • RoHS compliant
