製品概要
概要

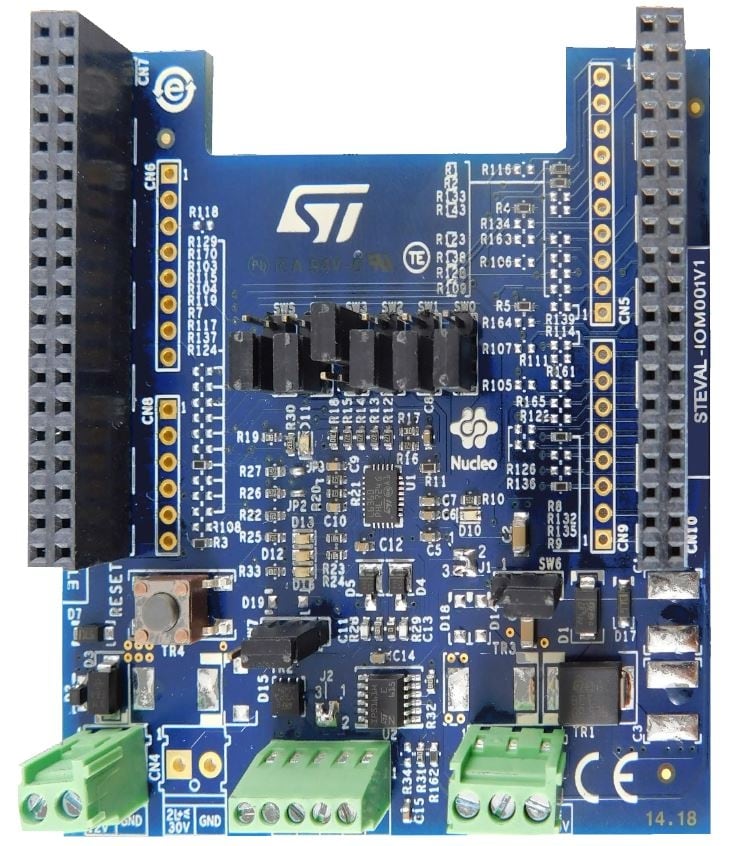

The STEVAL-IOM001V1 evaluation board is based on the L6360 IO-Link master transceiver with physical layer compliant with IO-Link v1.1 specification. Together with the STSW-IOM001 example code, it provides an affordable and easy-to-use solution for the development of user applications, letting you easily evaluate the communication features and robustness of the L6360.
You can also perform evaluation of multiple ports industrial IO-Link master modules by connecting up to four STEVAL-IOM001V1 with few solder bridge modifications.
The STEVAL-IOM001V1 interfaces with the STM32 Nucleo microcontroller via UART and GPIO pins and is compatible with the Arduino UNO R3 (optional configuration) and ST morpho (default configuration) connectors.
-
特徴
- IO-Link master PHY based on L6360
- Interrupt diagnostics pin
- I²C and UART interface
- SPI (slave) interface
- 65 mA selectable (3.3 or 5.0 V) linear regulator
- CQ (push-pull) and L+ (high side) switches
- IQ additional IEC61131-2 type 1 digital input
- L+ and CQ overload and overheating protections with non-dissipative cut-off function
- QFN-26L (3.5x5x1 mm) package
- Operating voltage range from 18 to 32.5 V
- Additional high side switch for L+ heavy loads (IPS161H)
- LEDs for status and diagnostics
- Ground and VCC wire break protections
- EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
- Equipped with ST morpho connectors
- CE certified
- RoHS and China RoHS compliant
おすすめ製品
STM32 Nucleo pack for IO-Link master with IO-Link v1.1 PHY and stack
Graphical user interface for the STEVAL-IOM001V1 and STEVAL-IOD003V1 IO-Link evaluation boards
L6360 IO-Link communication transceiver master IC evaluation software based on STM32Cube
推奨コンテンツ
関連アプリケーション
インダストリアル
All tools & software
-
-
製品型番 ステータス 概要 タイプ サプライヤ Worldwide worldwide Asia region Europe region Africa region North America region South America region Oceania region Afghanistan country Bahrain country Bangladesh country Bhutan country Brunei country Burma (Myanmar) country Cambodia country China country East Timor country India country Indonesia country Iraq country Japan country Jordan country Kazakhstan country Kuwait country Kyrgyzstan country Laos country Malaysia country Maldives country Mongolia country Nepal country Oman country Pakistan country Philippines country Qatar country Russian Federation country Saudi Arabia country Singapore country South Korea country Sri Lanka country Taiwan country Tajikistan country Thailand country Turkmenistan country United Arab Emirates country Uzbekistan country Vietnam country Yemen country Albania country Andorra country Armenia country Austria country Azerbaijan country Belarus country Belgium country Bosnia and Herzegovina country Bulgaria country Croatia country Cyprus country Czech Republic country Denmark country Estonia country Finland country France country Georgia country Germany country Greece country Hungary country Iceland country Ireland country Israel country Italy country Latvia country Liechtenstein country Lithuania country Luxembourg country Macedonia country Malta country Moldova country Monaco country Montenegro country Netherlands country Norway country Poland country Portugal country Romania country San Marino country Serbia country Slovakia country Slovenia country Spain country Sweden country Switzerland country Turkey country Ukraine country United Kingdom country Vatican City country Algeria country Angola country Benin country Botswana country Burkina country Burundi country Cameroon country Cape Verde country Central African Republic country Chad country Comoros country Democratic Republic of Congo country Djibouti country Egypt country Equatorial Guinea country Eritrea country Ethiopia country Gabon country Gambia country Ghana country Guinea country Guinea-Bissau country Ivory Coast country Kenya country Lesotho country Liberia country Libya country Madagascar country Malawi country Mali country Mauritania country Mauritius country Morocco country Mozambique country Namibia country Niger country Nigeria country Rwanda country Sao Tome and Principe country Senegal country Seychelles country Sierra Leone country Somalia country South Africa country Swaziland country Tanzania country Togo country Tunisia country Uganda country Zambia country Zimbabwe country Antigua and Barbuda country Bahamas country Barbados country Belize country Canada country Costa Rica country Dominica country Dominican Republic country El Salvador country Grenada country Guatemala country Haiti country Honduras country Jamaica country Mexico country Nicaragua country Panama country Saint Kitts and Nevis country Saint Lucia country Saint Vincent and the Grenadines country Trinidad and Tobago country United States country Argentina country Bolivia country Brazil country Chile country Colombia country Ecuador country Guyana country Paraguay country Peru country Suriname country Uruguay country Venezuela country Australia country Fiji country Kiribati country Marshall Islands country Micronesia country Nauru country New Zealand country Palau country Papua New Guinea country Samoa country Solomon Islands country Tonga country Tuvalu country Vanuatu country STSW-IOLINKGUI
量産中Graphical user interface for the STEVAL-IOM001V1 and STEVAL-IOD003V1 IO-Link evaluation boards
評価ツール用ソフトウェア ST STSW-IOLINKGUI概要:
Graphical user interface for the STEVAL-IOM001V1 and STEVAL-IOD003V1 IO-Link evaluation boardsWorldwide worldwide Asia region Europe region Africa region North America region South America region Oceania region Afghanistan country Bahrain country Bangladesh country Bhutan country Brunei country Burma (Myanmar) country Cambodia country China country East Timor country India country Indonesia country Iraq country Japan country Jordan country Kazakhstan country Kuwait country Kyrgyzstan country Laos country Malaysia country Maldives country Mongolia country Nepal country Oman country Pakistan country Philippines country Qatar country Russian Federation country Saudi Arabia country Singapore country South Korea country Sri Lanka country Taiwan country Tajikistan country Thailand country Turkmenistan country United Arab Emirates country Uzbekistan country Vietnam country Yemen country Albania country Andorra country Armenia country Austria country Azerbaijan country Belarus country Belgium country Bosnia and Herzegovina country Bulgaria country Croatia country Cyprus country Czech Republic country Denmark country Estonia country Finland country France country Georgia country Germany country Greece country Hungary country Iceland country Ireland country Israel country Italy country Latvia country Liechtenstein country Lithuania country Luxembourg country Macedonia country Malta country Moldova country Monaco country Montenegro country Netherlands country Norway country Poland country Portugal country Romania country San Marino country Serbia country Slovakia country Slovenia country Spain country Sweden country Switzerland country Turkey country Ukraine country United Kingdom country Vatican City country Algeria country Angola country Benin country Botswana country Burkina country Burundi country Cameroon country Cape Verde country Central African Republic country Chad country Comoros country Democratic Republic of Congo country Djibouti country Egypt country Equatorial Guinea country Eritrea country Ethiopia country Gabon country Gambia country Ghana country Guinea country Guinea-Bissau country Ivory Coast country Kenya country Lesotho country Liberia country Libya country Madagascar country Malawi country Mali country Mauritania country Mauritius country Morocco country Mozambique country Namibia country Niger country Nigeria country Rwanda country Sao Tome and Principe country Senegal country Seychelles country Sierra Leone country Somalia country South Africa country Swaziland country Tanzania country Togo country Tunisia country Uganda country Zambia country Zimbabwe country Antigua and Barbuda country Bahamas country Barbados country Belize country Canada country Costa Rica country Dominica country Dominican Republic country El Salvador country Grenada country Guatemala country Haiti country Honduras country Jamaica country Mexico country Nicaragua country Panama country Saint Kitts and Nevis country Saint Lucia country Saint Vincent and the Grenadines country Trinidad and Tobago country United States country Argentina country Bolivia country Brazil country Chile country Colombia country Ecuador country Guyana country Paraguay country Peru country Suriname country Uruguay country Venezuela country Australia country Fiji country Kiribati country Marshall Islands country Micronesia country Nauru country New Zealand country Palau country Papua New Guinea country Samoa country Solomon Islands country Tonga country Tuvalu country Vanuatu country STSW-IOM001
量産中L6360 IO-Link communication transceiver master IC evaluation software based on STM32Cube
評価ツール用ソフトウェア ST STSW-IOM001概要:
L6360 IO-Link communication transceiver master IC evaluation software based on STM32Cube
-
-
-
製品型番 ステータス 概要 タイプ サプライヤ Worldwide worldwide Asia region Europe region Africa region North America region South America region Oceania region Afghanistan country Bahrain country Bangladesh country Bhutan country Brunei country Burma (Myanmar) country Cambodia country China country East Timor country India country Indonesia country Iraq country Japan country Jordan country Kazakhstan country Kuwait country Kyrgyzstan country Laos country Malaysia country Maldives country Mongolia country Nepal country Oman country Pakistan country Philippines country Qatar country Russian Federation country Saudi Arabia country Singapore country South Korea country Sri Lanka country Taiwan country Tajikistan country Thailand country Turkmenistan country United Arab Emirates country Uzbekistan country Vietnam country Yemen country Albania country Andorra country Armenia country Austria country Azerbaijan country Belarus country Belgium country Bosnia and Herzegovina country Bulgaria country Croatia country Cyprus country Czech Republic country Denmark country Estonia country Finland country France country Georgia country Germany country Greece country Hungary country Iceland country Ireland country Israel country Italy country Latvia country Liechtenstein country Lithuania country Luxembourg country Macedonia country Malta country Moldova country Monaco country Montenegro country Netherlands country Norway country Poland country Portugal country Romania country San Marino country Serbia country Slovakia country Slovenia country Spain country Sweden country Switzerland country Turkey country Ukraine country United Kingdom country Vatican City country Algeria country Angola country Benin country Botswana country Burkina country Burundi country Cameroon country Cape Verde country Central African Republic country Chad country Comoros country Democratic Republic of Congo country Djibouti country Egypt country Equatorial Guinea country Eritrea country Ethiopia country Gabon country Gambia country Ghana country Guinea country Guinea-Bissau country Ivory Coast country Kenya country Lesotho country Liberia country Libya country Madagascar country Malawi country Mali country Mauritania country Mauritius country Morocco country Mozambique country Namibia country Niger country Nigeria country Rwanda country Sao Tome and Principe country Senegal country Seychelles country Sierra Leone country Somalia country South Africa country Swaziland country Tanzania country Togo country Tunisia country Uganda country Zambia country Zimbabwe country Antigua and Barbuda country Bahamas country Barbados country Belize country Canada country Costa Rica country Dominica country Dominican Republic country El Salvador country Grenada country Guatemala country Haiti country Honduras country Jamaica country Mexico country Nicaragua country Panama country Saint Kitts and Nevis country Saint Lucia country Saint Vincent and the Grenadines country Trinidad and Tobago country United States country Argentina country Bolivia country Brazil country Chile country Colombia country Ecuador country Guyana country Paraguay country Peru country Suriname country Uruguay country Venezuela country Australia country Fiji country Kiribati country Marshall Islands country Micronesia country Nauru country New Zealand country Palau country Papua New Guinea country Samoa country Solomon Islands country Tonga country Tuvalu country Vanuatu country P-NUCLEO-IOM01M1
量産中STM32 Nucleo pack for IO-Link master with IO-Link v1.1 PHY and stack
STM32 ODE Move-Actuate HW --
-
すべてのリソース
|
Resource title
|
バージョン
|
Latest update
|
|---|
Board Manufacturing Specifications (1)
|
Resource title
|
バージョン
|
Latest update
|
||
|---|---|---|---|---|
| ZIP | 1.0 | 06 Jul 2018 |
06 Jul 2018
|
BOM (1)
|
Resource title
|
バージョン
|
Latest update
|
||
|---|---|---|---|---|
| 1.0 | 06 Jul 2018 |
06 Jul 2018
|
Schematic Pack (1)
|
Resource title
|
バージョン
|
Latest update
|
||
|---|---|---|---|---|
| 1.0 | 23 Apr 2021 |
23 Apr 2021
|
If you don't want to login now, you can download the CAD design file by simply providing your name and e-mail address in the form below and validating it.
This allows us to stay in contact and inform you about updates of this CAD design file.
For subsequent downloads this step will not be required for most of our CAD design files.
To validate your e-mail and start the download, please click on the link inside the e-mail that has been sent to you. This link will be valid for 24 hours. Please check your spam filters in case you did not receive the e-mail.
Unfortunately, the link you clicked didn't work. Don't worry, here are the steps you can take to get your download started:
If you still can't download the CAD design file, please reach out to us on the ST Community and we will help you- Ensure you are using the same browser used to made the initial request
- Check that cookies are allowed in your browser
- Update your browser to its latest version
- Please also note that links forwarded by somebody else will not work
The e-mail address that you have entered during the download attempt has not yet been validated. Please check your inbox for the e-mail with the download link. In case you did not receive the e-mail, or you entered a wrong e-mail address, you can start-over the process.
品質 & 信頼性
| 製品型番 | マーケティング･ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | WEEE Compliant | 材料宣誓書** |
|---|---|---|---|---|---|---|
| STEVAL-IOM001V1 |
量産中
|
CARD | インダストリアル | Ecopack2 | - |
|
Marketing Status
Package
CARD
Grade
Industrial
RoHS Compliance Grade
Ecopack2
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
|
製品型番
|
販売代理店から購入
|
STから購入
|
コア製品
|
製品ステータス
|
サプライヤ
|
ECCN (US)
|
ECCN (EU)
|
Country of Origin
|
Budgetary Price (US$)*/Qty
|
|||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-IOM001V1 |
Available at
3 distributors
販売代理店在庫STEVAL-IOM001V1
販売代理店在庫データ: 2021-10-24
販売代理店
RS COMPONENTS 在庫 4Min.Order 1MOUSER 在庫 5Min.Order 1ANGLIA Live 在庫 1Min.Order 1販売代理店在庫データ: 2021-10-24 |
Buy Direct | L6360 |
量産中
|
ST | EAR99 | NEC | ITALY | 42.0 / 1 |
販売代理店在庫STEVAL-IOM001V1
|
販売代理店
|
地域 | 在庫 | 最小発注数量 | パートナー企業リンク |
|---|---|---|---|---|
| RS COMPONENTS | EUROPE | 4 | 1 | Buy from Distributor |
| MOUSER | WORLDWIDE | 5 | 1 | Buy from Distributor |
| ANGLIA Live | EUROPE | 1 | 1 | Buy from Distributor |
販売代理店在庫データ: 2021-10-24
RS COMPONENTS
在庫
4Min.Order
1MOUSER
在庫
5Min.Order
1ANGLIA Live
在庫
1Min.Order
1販売代理店在庫データ: 2021-10-24
サプライヤ
ST
ECCN (US)
EAR99
ECCN (EU)
NEC
Budgetary Price (US$)* / Qty
42.0 / 1
Country of Origin
ITALY
（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
