STEVAL-ISA122V1

Active

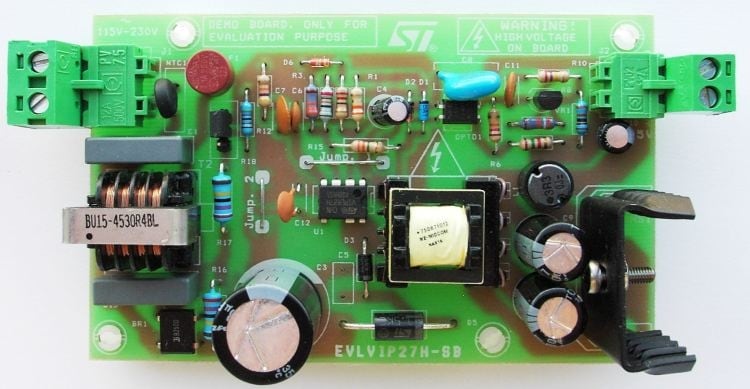

Wide input-range, single-output 5 V / 11 W power supply demonstration board based on the VIPer27

データブリーフ ダウンロード

Order from our distributors

Check availability
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products
  • The STEVAL-ISA122V1 demonstration board meets the specifications of a wide range of auxiliary power supplies for applications including LCD or plasma TVs and desktop computers, where the power supply that converts the energy from the mains often includes two modules.

    One module is the main power supply which provides most of the power, and is off when the application is shut down or in standby mode.
    The other is the auxiliary power supply, which only provides energy to specific parts of the equipment such as the USB ports, remote receivers, or modems, but stays on when the application is in standby mode.
    It is optimized for very low standby consumption, which allows it to satisfy the most stringent energy-saving requirements.
    The VIPer27 has a switching frequency of 115 kHz, which helps to reduce the transformer size.

    主な特徴

    • Wide input voltage range (VIN): 90 to 265 Vrms
    • Nameplate output voltage (Vout): 5 V
    • Max output current IOUT: 2.2 A
    • Precision of output regulation: ±5%
    • High frequency output voltage ripple (ΔVout_HF): 50 mV
    • Max ambient operating temperature (TA): 60 °C
    • RoHS compliant

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
Board production status
販売代理店からオーダー
STからオーダー
STEVAL-ISA122V1 VIPER27HN
Active
134 1 EAR99 ITALY - 在庫チェック

Distributor availability ofSTEVAL-ISA122V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 2 1 Order Now

代理店レポートによる在庫データ: 2019-12-13

代理店名

DIGIKEY

在庫

2

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-13

STEVAL-ISA122V1

コア製品

VIPER27HN

製品ステータス

Active

Unit Price (US$)

134.0*

Distributor availability ofSTEVAL-ISA122V1

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 2 1 Order Now

代理店レポートによる在庫データ: 2019-12-13

代理店名

DIGIKEY

在庫

2

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-13

Unit Price (US$)

134

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨製品

推奨コンテンツ

関連アプリケーション

電源 & コンバータ

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB1871
      Wide input-range, single-output 5 V / 11 W power supply demonstration board based on the VIPer27
      1.0
      243.06 KB
      PDF
      DB1871

      Wide input-range, single-output 5 V / 11 W power supply demonstration board based on the VIPer27

ハードウェアリソース

    • 概要 Version Size Action
      STEVAL-ISA122V1 gerber files 1.0
      116.08 KB
      ZIP

      STEVAL-ISA122V1 gerber files

    • 概要 Version Size Action
      STEVAL-ISA122V1 BOM 1.0
      71.16 KB
      PDF

      STEVAL-ISA122V1 BOM

    • 概要 Version Size Action
      STEVAL-ISA122V1 schematics 1.0
      156 KB
      PDF

      STEVAL-ISA122V1 schematics

関連資料

    • 概要 Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      715.75 KB
      PDF

      eDesignSuite-The smart way to design your application

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant Material Declaration**
STEVAL-ISA122V1
Active
CARD インダストリアル Ecopack2 -

STEVAL-ISA122V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
