STEVAL-ISA141V2

量産中
MySTに保存

2 A, high efficiency single inductor buck-boost DC-DC converter and high brightness white LED driver based on the STBB3JCC

データブリーフのダウンロード
概要
Online design
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
はじめる
Partner products
Sales Briefcase

製品概要

概要

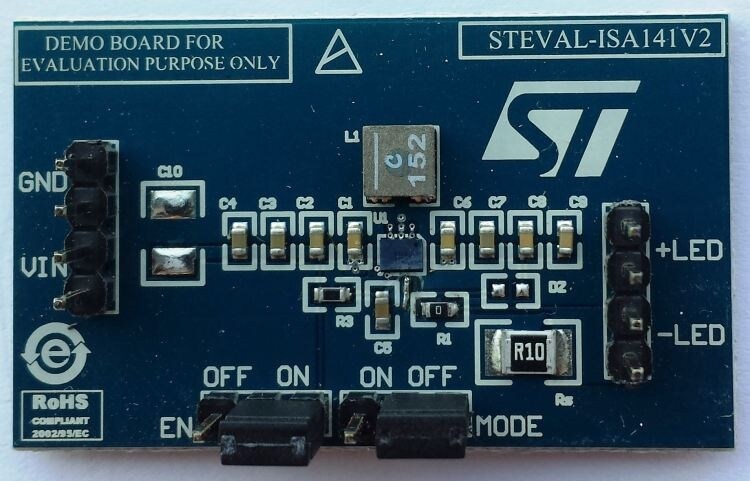

The STEVAL-ISA141V2 is a product evaluation board based on the STBB3JCC fixed frequency, high efficiency, buck-boost DC-DC converter. The STBB3JCC is capable of driving a HB WLED from a 1.8 V to 5.5 V input voltage supplied by a one cell Li-Ion battery. Thanks to its high switching frequency (2 MHz) it is possible to reduce the size and cost of the external power components. Low FB voltage (100 mV) reduces power dissipation across the external sensing resistor and maximizes the LED current.

  • 特徴

    • 100 mV voltage feedback
    • Input voltage range from 1.8 V to 5.5 V
    • 2 A output current at 3.3 V in buck mode (VIN = 3.6 V to 5.5 V)
    • 800 mA output current at 3.3 V in boost mode (VIN 2.0 V)
    • Typical efficiency greater than 94%
    • ± 2% DC feedback voltage tolerance
    • Automatic transition between step-down and boost mode
    • Adjustable output voltage from 1.2 V to 5.5 V
    • Power save mode (PS) at light load
    • 2.0 MHz fixed switching frequency
    • Adjustable switching frequency up to 2.4 MHz (by external synchronous square signal)
    • Device quiescent current less than 50 A
    • Load disconnect during shutdown
    • Shutdown function and soft-start
    • Shutdown current < 1 A
    • Available in Flip Chip 20, pitch = 0.4 mm
    • RoHS compliant
    続きを読む 一部を表示

推奨コンテンツ

All resources

Expand all categories
Resource title
Latest update

Board Manufacturing Specifications (1)

Resource title
Latest update
STEVAL-ISA141V2 gerber files 1.0
19 Mar 2015
19 Mar 2015
STEVAL-ISA141V2 gerber files 1.0

BOM (1)

Resource title
Latest update
STEVAL-ISA141V2 BOM 1.0
19 Mar 2015
19 Mar 2015
STEVAL-ISA141V2 BOM 1.0

Schematic Pack (1)

Resource title
Latest update
STEVAL-ISA141V2 schematics 2.0
06 Jun 2016
06 Jun 2016
STEVAL-ISA141V2 schematics 2.0

品質 & 信頼性

製品型番 Marketing Status パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant 材料宣誓書**
STEVAL-ISA141V2
量産中
CARD インダストリアル Ecopack2 -

STEVAL-ISA141V2

Package:

CARD

Material Declaration**:

More Info

Marketing Status

量産中

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください

サンプル & 購入

製品型番
販売代理店から購入
STから購入
コア製品
製品ステータス
サプライヤ
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STEVAL-ISA141V2

販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください

 STBB3JCC
量産中
- EAR99 NEC ITALY - 42.0 / 1

STEVAL-ISA141V2

コア製品

STBB3JCC

製品ステータス

量産中
詳細情報

Budgetary Price (US$)*/Qty

42.0 / 1

サプライヤ

-

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

42.0 / 1

Country of Origin

ITALY

Board production status

-

（*）概算用の希望小売単価（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
