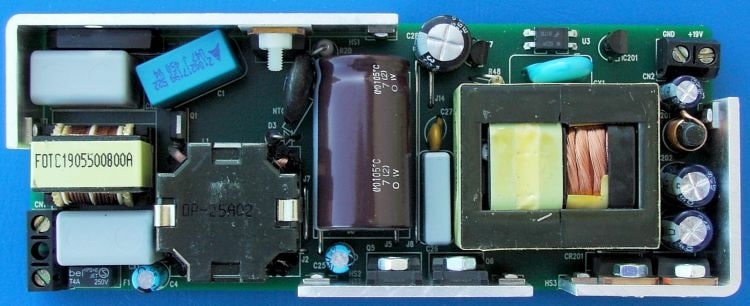

  • This demonstration board is a 90 W wide-range mains AC-DC adapter which is power factor corrected. Its electrical specifications are suitable for typical high-end portable computer power adapters. The particular benefits of this design are the very low no-load input consumption (<0.5 W) and the very high global efficiency.

    The architecture is based on a two-stage approach: a front-end PFC pre-regulator based on the L6563 TM PFC controller and a downstream multi-resonant half-bridge converter that makes use of the L6599 resonant controller.

    主な特徴

    • Latch mode: OVP acts while VOUT > 29 VDC
    • Hiccup mode: Auto recovery with SCP
    • Dimensions (L/W/H): 132 mm / 52 mm / 22 mm
    • High output power: 90 W (4.74 A, 19 VDC)
    • Universal AC mains range: 90 VAC to 264 VAC
    • Very low standby power: less than 0.5 W at 264 V
    • Efficiency > 88% at universal AC mains range
    • Very low output noise and ripple: less than 300 m VP-P

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
Board production status
販売代理店からオーダー
STからオーダー
STEVAL-ISC002V1 L6599D; STP9NK50ZFP
NRND
190 1 EAR99 - -

販売代理店に在庫がない場合は、STのセールスオフィスまでお問い合わせください

STEVAL-ISC002V1

コア製品

L6599D; STP9NK50ZFP

製品ステータス

NRND

Unit Price (US$)

190.0*

Unit Price (US$)

190

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB0626
      Resonant LCC 90 W notebook power adapter based on the L6599 and STP12NM50N
      1.2
      91.76 KB
      PDF
      DB0626

      Resonant LCC 90 W notebook power adapter based on the L6599 and STP12NM50N

ハードウェアリソース

    • 概要 Version Size Action
      Gerber files for STEVAL-ISC002V1 board 1.0
      103.8 KB
      ZIP

      Gerber files for STEVAL-ISC002V1 board

    • 概要 Version Size Action
      BOM for STEVAL-ISC002V1 board 1.0
      47.4 KB
      PDF

      BOM for STEVAL-ISC002V1 board

    • 概要 Version Size Action
      Board schematics for STEVAL-ISC002V1 board 1.0
      45.74 KB
      PDF

      Board schematics for STEVAL-ISC002V1 board

関連資料

    • 概要 Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      715.75 KB
      PDF

      eDesignSuite-The smart way to design your application

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant Material Declaration**
STEVAL-ISC002V1
NRND
CARD インダストリアル Ecopack2 -

STEVAL-ISC002V1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
