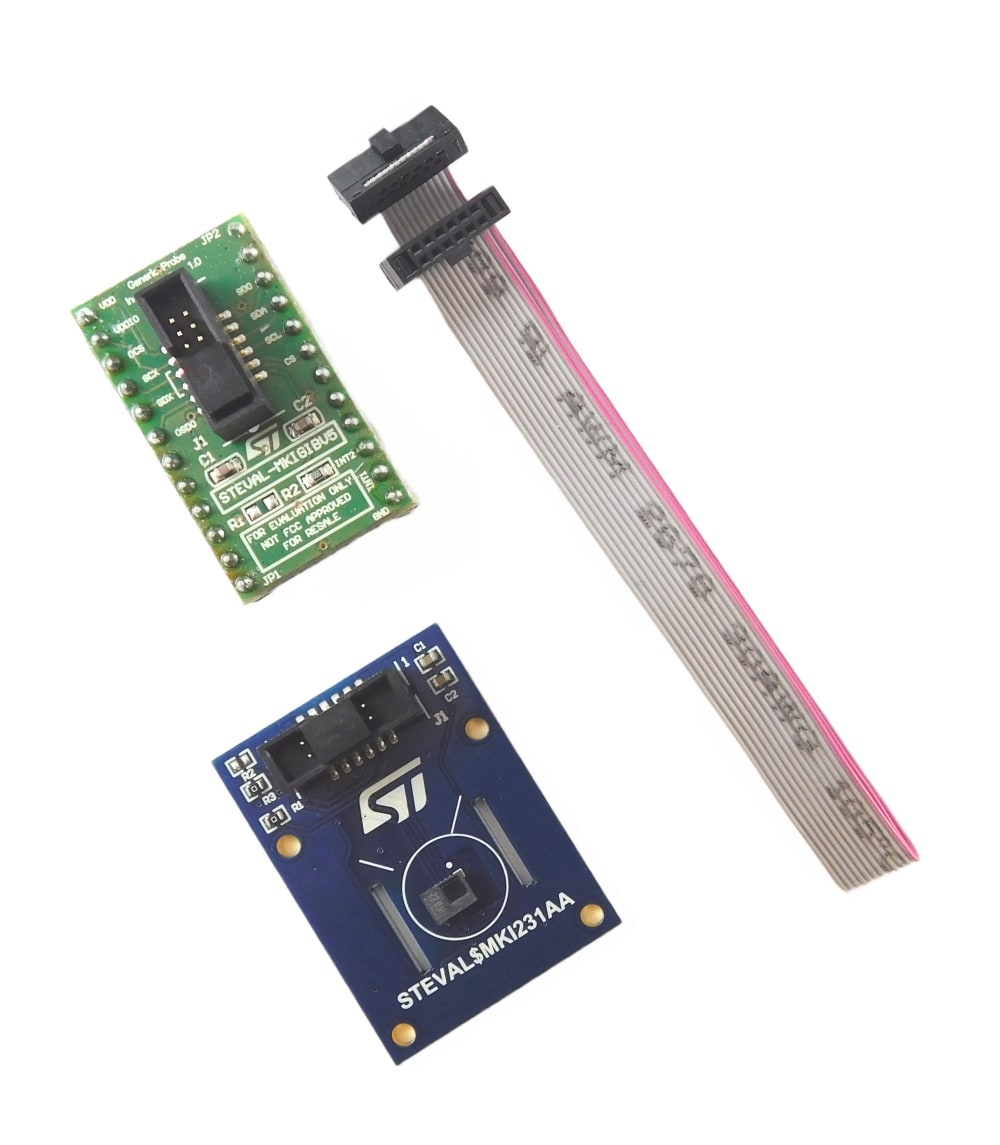

The STEVAL-MKI231KA demonstration board is a kit consisting of a specific PCB, mounting the STHS34PF80 low-power, high-sensitivity infrared sensor for presence and motion detection, which is connected through a flat cable to a generic adapter board (STEVAL-MKIGIBV5) to make it compatible with the STEVAL-MKI109D. A plastic holder with a Fresnel lens (TMOS63-10) has been provided in the kit for better performance of the device in terms of data acquisition for some applications.
The STEVAL-MKIGIBV5 can be plugged into a standard DIL24 socket. The kit provides the complete STHS34PF80 pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.
It is also possible to plug the board into X-NUCLEO-IKS02A1 or X-NUCLEO-IKS4A1. The kit is included in an X-CUBE-MEMS1 expansion software package for STM32.
-
All features
- User-friendly STHS34PF80 board
- Complete STHS34PF80 pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109D evaluation platform
- RoHS compliant
