Product overview
概要

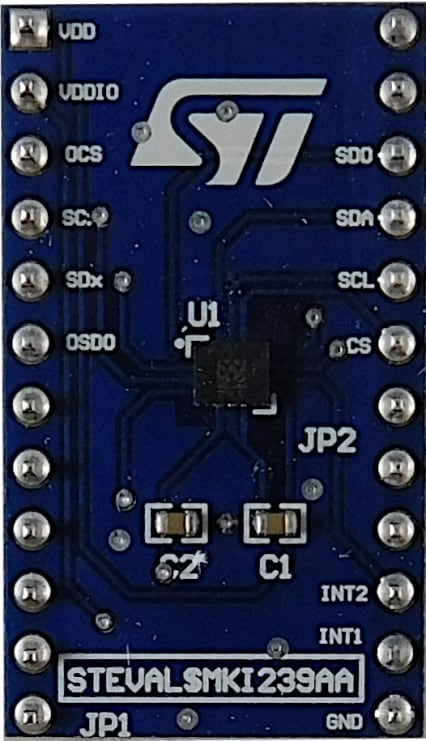

The STEVAL-MKI239A is an adapter board designed to facilitate the evaluation of the LSM6DSV 6-axis IMU (inertial measurement unit) in the MEMS and sensors product portfolio.
The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI239A can be plugged into a standard DIL24 socket. The adapter provides the complete LSM6DSV pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.
The adapter board can also be plugged into the X-NUCLEO-IKS4A1 expansion board.
-
All features
- Complete LSM6DSV pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109D evaluation platform
- RoHS compliant
