製品概要
概要

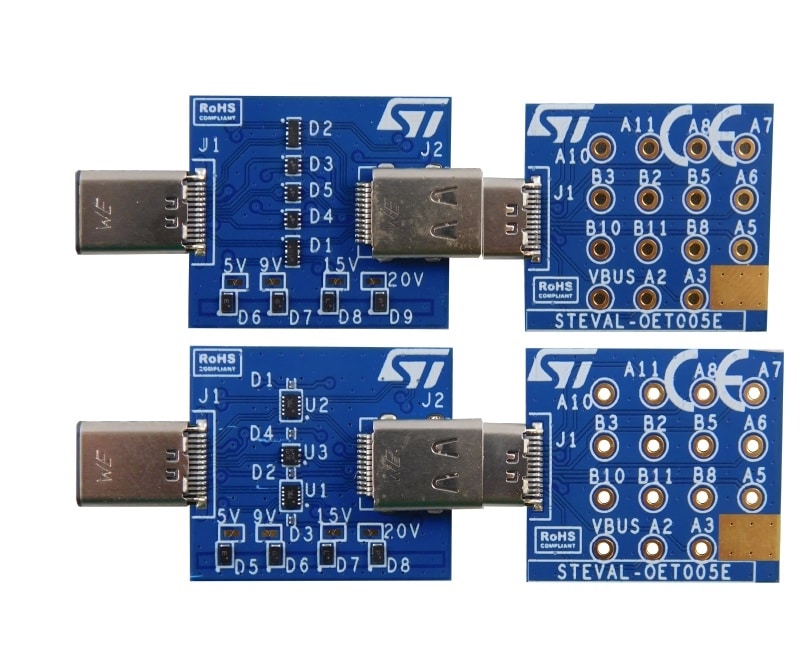

The STEVAL-OET005 kit allows evaluating ST ESD protection devices or filtering devices for USB Type-C connectors.
There are two different kits available for sale. Each kit contains an evaluation board and a testing board.
The STEVAL-OET005VC kit provides a protection solution of all lines (data, control, and power) in a 500 µm pitch package. This kit contains the STEVAL-OET005C evaluation board and the STEVAL-OET005E testing board.
The STEVAL-OET005VD kit provides a protection and filtering solution (common mode filters and protection for all lines) in a 500 µm pitch and 0201 package. This kit contains the STEVAL-OET005D evaluation board and the STEVAL-OET005E testing board.
-
特徴
- Data, control, and power line protections
- Plug and receptacle to connect the board to a host and a cable, or a device and a cable
すべてのリソース
Resource title | バージョン | Latest update |
---|
Board Manufacturing Specifications (2)
Resource title | バージョン | Latest update | ||
---|---|---|---|---|
ZIP | 1.0 | 12 Dec 2022 | 12 Dec 2022 | |
ZIP | 1.0 | 12 Dec 2022 | 12 Dec 2022 |
BOM (2)
Resource title | バージョン | Latest update | ||
---|---|---|---|---|
1.0 | 12 Dec 2022 | 12 Dec 2022 | ||
1.0 | 12 Dec 2022 | 12 Dec 2022 |
Schematic Pack (2)
Resource title | バージョン | Latest update | ||
---|---|---|---|---|
1.0 | 12 Dec 2022 | 12 Dec 2022 | ||
1.0 | 12 Dec 2022 | 12 Dec 2022 |
品質 & 信頼性
製品型番 | マーケティング・ステータス | パッケージ | グレード | RoHSコンプライアンスグレード | WEEE Compliant | 材料宣誓書** |
---|---|---|---|---|---|---|
STEVAL-OET005VC | 量産中 | CARD | インダストリアル | Ecopack2 | はい | |
STEVAL-OET005VD | 量産中 | CARD | インダストリアル | Ecopack2 | はい | |
STEVAL-OET005VC
Package:
CARDMaterial Declaration**:
STEVAL-OET005VD
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ・ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
サンプル & 購入
製品型番 | Order from distributors | STから購入 | コア製品 | 製品ステータス | サプライヤ | ECCN (US) | ECCN (EU) | Country of Origin | Budgetary Price (US$)*/Qty | |
---|---|---|---|---|---|---|---|---|---|---|
STEVAL-OET005VD | distributors 販売代理店に在庫がない場合は、STのセールス・オフィスまでお問い合わせください | ESD051-1BF4, ECMF02-2HSMX6, ECMF4-40A100N10, ESDA7P120-1U1M, ESDA13P70-1U1M, ESDA17P50-1U1M, ESDA25P35-1U1M | 量産中 | ST | EAR99 | NEC | ITALY | | ||
STEVAL-OET005VC | distributors 販売代理店に在庫がない場合は、STのセールス・オフィスまでお問い合わせください | HSP051-4M10, HSP061-2M6, ESDA7P120-1U1M, ESDA13P70-1U1M, ESDA17P50-1U1M, ESDA25P35-1U1M | 量産中 | ST | EAR99 | NEC | ITALY | |
