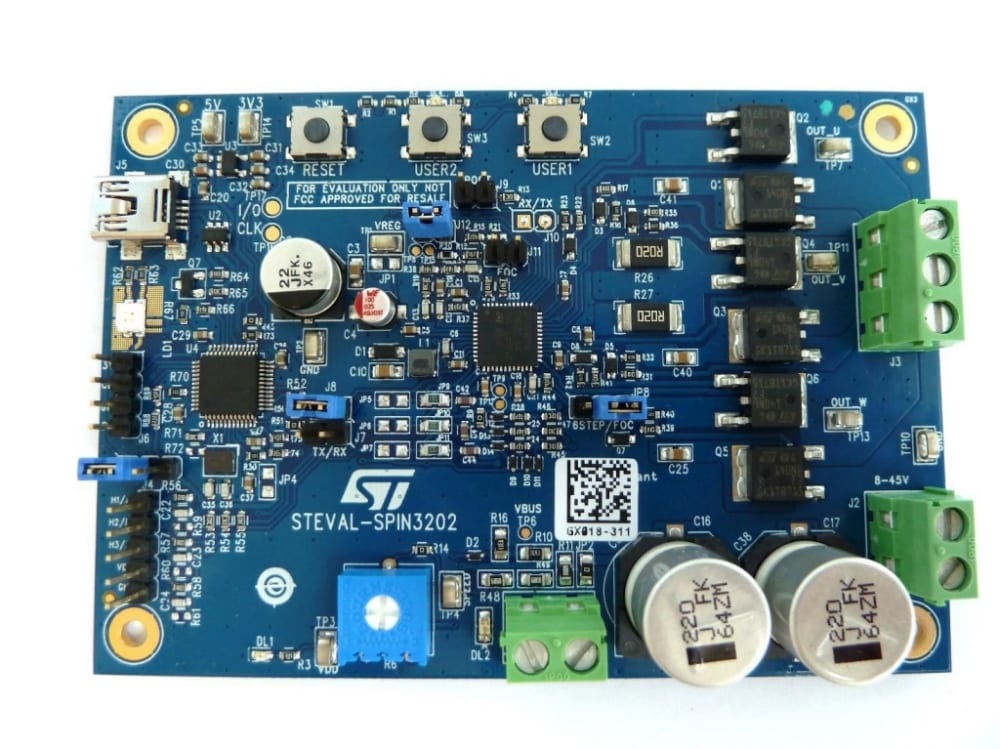

The STEVAL-SPIN3202 three-phase brushless DC motor driver board is based on the STSPIN32F0A 3-phase controller with integrated STM32 MCU and STD140N6F7 MOSFETs.

It implements a single shunt resistor current reading topology and provides an easy-to-use solution for the implementation of home appliances, fans, drones, power tools, and low voltage motor driving applications.
The board is designed for sensored or sensorless vector control FOC and six-step algorithms with single shunt sensing.

特徴
Input voltage from 7 V to 45 V

Output current up to 15 A_rms

Power stage based on STD140N6F7 MOSFETs

Embedded 3.3 V buck regulator

Embedded 12 V LDO regulator

Single shunt current sensing

Digital Hall sensors and encoder input

Overcurrent comparator
Bus voltage sensing

Fully compatible with STM32 Motor Control SDK (X-CUBE-MCSDK-Y)

6-step sensorless and sensored firmware supported

Embedded ST-LINK/V2-1

Easy user interface with buttons and trimmer

STM32 firmware boot loader supported

RoHS compliant
