STM32H7B3I-EVAL

量産中

Evaluation board with STM32H7B3LI MCU

データブリーフのダウンロード Order Direct
概要
Online design
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
Partner products
Sales Briefcase

製品概要

概要

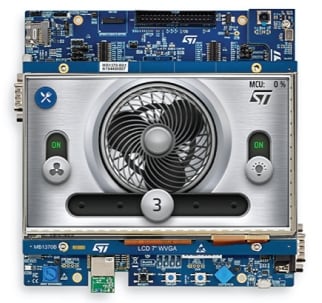

The STM32H7B3I-EVAL Evaluation board is a complete demonstration and development platform for the Arm® Cortex®-M7-based STM32H7B3LIH6QU microcontroller. The STM32H7B3I-EVAL Evaluation board provides access to all the STM32 peripherals for user applications, and include an embedded STLINK-V3E debugger/programmer. The full range of the STM32H7B3I-EVAL hardware features helps to develop applications and evaluate all the peripherals, such as USB OTG_HS and FS, CAN FD, USART, ADC and DAC, digital microphones, SRAM, SDRAM, NOR Flash memory, Octo-SPI Flash memory with OTFDEC, microSD™ 3.0 card, 7" 800x480 WVGA TFT color RGB LCD with capacitive touch panel (I2C), and DCMI camera.
The expansion connectors provide an easy way to add specialized features, while ETM trace is supported through external probes.
  • 特徴

    • STM32H7B3LIH6Q Arm® Cortex® microcontroller with 2 Mbytes of Flash memory and 1.4 Mbytes of RAM in TFBGA225 package
    • 7" 800x480 WVGA TFT color LCD module with RGB parallel interface and capacitive touch panel with I2C interface
    • 1/4" color CMOS QSXGA (5 Mpixels) camera module with DCMI and I2C interface
    • USB OTG_HS and USB OTG_FS
    • On-board current measurement
    • I2S / SAI audio codec
    • 512-Mbit Octal-SPI NOR Flash, 8 Mx32bit SDRAM, 1 Mx16bit SRAM, and 8 Mx16bit NOR Flash
    • 4 color user LEDs
    • Reset, Wake Up and Tamper push-buttons
    • 4-direction joystick with a selection button
    • Potentiometer
    • Coin-battery cell holder for power backup
    • Power-metering and temperature-monitoring demonstration with 2 dual-channel, sigma-delta modulators
    • Wi-Fi® module compliant with 802.11 b/g/n
    • Board connectors:
      • 2 USB Micro-AB
      • 2 microSD™ cards
      • OCSPI NOR Flash module connector
      • Stereo Line OUT headset jack including analog microphone input
      • Stereo Line IN headset jack
      • 2xDB9 for external RS-232 port and CAN FD
      • JTAG and ETM trace debugger
      • Connectors for ADC and DAC
      • I/O expansion connectors
      • DFSDM microphones daughterboard expansion connector
      • Motor-control interface expansion connector
      • I2C expansion connector
    • Flexible power-supply options: ST-LINK, USB VBUS or external sources
    • On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, and GCC-based IDEs
