製品概要
概要

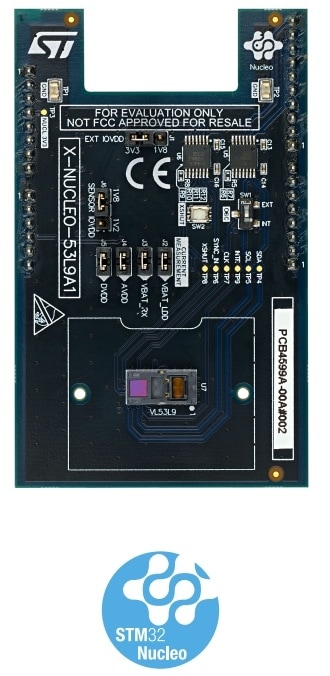

The X-NUCLEO-53L9A1 is an expansion board for any STM32 Nucleo board equipped with the Arduino® R 3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications based on the VL53L9CX series Time-of-Flight sensors.
Several ST expansion boards can be stacked through the Arduino® connectors, which allow, for example, the development of VL53L9CX series ToF applications with a Bluetooth® LE or Wi-Fi interfaces.
-
All features
- Time-of-Flight expansion board based on the VL53L9CX for STM32 Nucleo:
- dToF 3D LiDAR all-in-one module with high resolution of 2.3 K zones
- Wide 54 x 42° FoV, providing accurate ranging from 5 cm to 9 m
- Accurate absolute ranging distance, independent of the reflectance of the target
- Operating at up to a maximum 100 frames per second over a range of 5 cm to 9 meters, this low-power module consumes just 150 mW typical system power
- Histogram-based technology
- Great ranging performance, including under strong ambient light conditions, with a range of cover glass materials
- Multiobject detection capability
- 0.25, 0.5, and 1 mm spacers to simulate air gaps
- One cover glass to protect the sensor from dust
- Outputs rich 2D data (signal, reflectance, ambient), empowering advanced AI, and processing capabilities
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino® UNO R3 connectors
- Full system software supplied, including code examples and graphical user interface
- RoHS, CE, UKCA, and China RoHS compliant
- Time-of-Flight expansion board based on the VL53L9CX for STM32 Nucleo:
