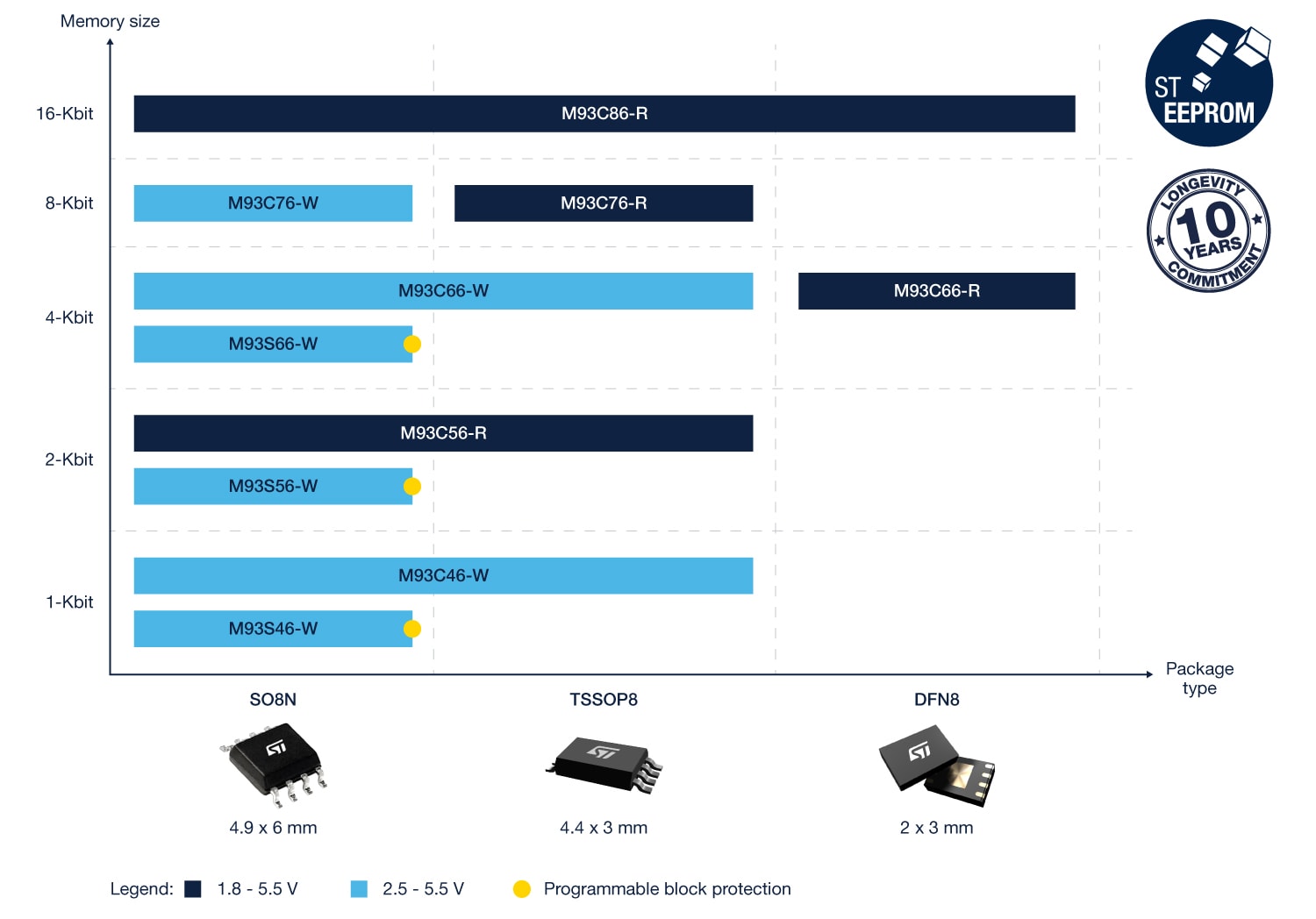

標準Microwire EEPROMは、最大16Kbitのメモリ容量でx8またはx16のメモリ構成を提供します。さらなる大容量化や柔軟な設計には、標準SPI EEPROMがおすすめです。
すべての製品がバイトあたり400万回、製品あたり1億回を超える書換え耐性と、200年間のデータ保持期間を備えています。
CAD Resourceタブから入手できるIBISおよびVerilogモデルにより、開発期間の短縮が可能です。
標準Microwire EEPROMは、STの10年間の長期製品供給保証プログラムの対象製品です。
-
M93C86-W
16 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C56-R
2 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C66-W
4 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C86-R
16 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C56-W
2 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93S66-W
4 Kbit (16-bit wide) MICROWIRE serial access EEPROM with block protection
-
M93C56-DRE
2-Kbit MICROWIRE bus EEPROM 105°C operation
-
M93C46-W
1 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C76-R
8 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93S56-W
2 Kbit (16-bit wide) MICROWIRE serial access EEPROM with block protection
-
M93S46-W
1-Kbit MICROWIRE serial access EEPROM with block protection
-
M93C76-W
8 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
-
M93C66-R
4 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
