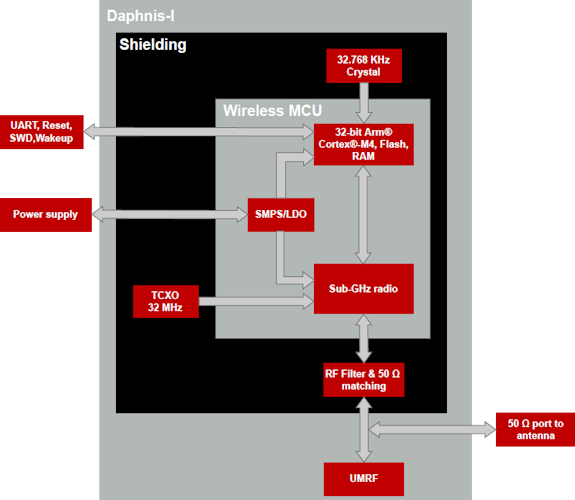

Daphnis-I is a low-power long-range transceiver module for LoRaWAN® applications based on the STM32WLE5CCU6 chip. Within a LoRaWAN® network, Daphnis-I takes the role of an end node. A LoRaWAN® gateway is required to use Daphnis-I as intended. Daphnis-I module complies with class A, class B, and class C of LoRaWAN® 1.0.4 specifications.

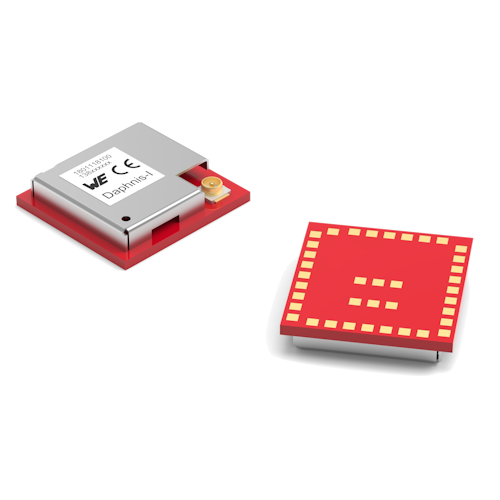

The compact 15 x 16 x 3 mm design allows the module to fit into small-size applications. The low power consumption of the Daphnis-I module makes it suitable for battery-powered applications.
The Daphnis-I module can be configured and taken into operation using AT commands via the UART interface.
The Daphnis-I EV-Kit and WE UART Terminal PC tool allow getting started with the module and testing its functionalities. The EV-Board can be connected to a USB port of a PC. The EV-Board also represents our reference design.
The module comes with the declaration of conformity (CE) and the module is compliant to RoHS and REACH.

Features:
- Low power long range module based on STM32WLE5CCU6 chip
- Easy to use AT command set via UART interface
- Long-Range-WAN 1.0.4 specification compliant
- Supports class A, class B, and class C
- Supports EU868 frequency band
- Small design size: 15 x 16 x 3 mm
- Ultralow power consumption of 63.9 nA in sleep mode
- 13.4 dBm output power
- Antenna connection either via UMRF connector or RF pin (2-in-1 module)
- Long-Range-WAN activation by OTAA/ABP

| 対応製品 | STM32WL |
| Device Type | 統合型モジュール |
| ファンクション | LoRaWAN module |
