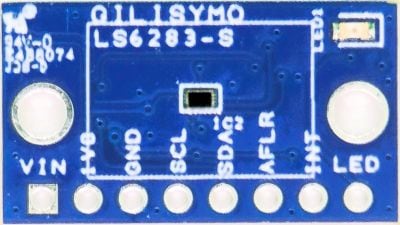

LS6283-S ALS Light Saber Sensor VD6283TX is an ALS breakout board designed for spectral measurement solutions. It features the VD6283TX sensor from STMicroelectronics and is ROHS compliant.

Features and Benefits of LS6283-S
- Board with VD6283TX sensor from STMicroelectronics.
- LED Independent Pin:
- Connected to Vin or 1V8 pin to indicate the power supply.
- Connected to a GPIO of the Host to indicate a precise distance or condition driven by your Firmware.
- LDO 1.8V with 200 mA output (when Vin can provide these additional current).
- VIN from 1.8V to 5V, compatible with boards like Arduino, Raspberry, and Nucleo Board.
- Level Shifter on I2C and INT (interrupt output).
- AFLR Output connected to GPIO2 with an RC filter (R=20k, C=1nF).
- Dimensions: 22.86mm x 12.7mm (0.9” x 0.5”).
Applications
- True tone color-sensing IC for smartphone and smartwatch screen adjustments, camera white balance color assistance.
- Lux and CCT measurement.
- Light frequency extraction for flicker correction assistance.
Cover Glass Compatibility
The LS6283-S is compatible with all the generic cover glass proposed by Gilisymo.
