製品概要
概要
The FLI59xx family of controllers are highly integrated mixed signal LCD controllers for multi-function LCD monitors and LCD TV applications supporting up to WUXGA resolutions.
The FLI59xx has integrated advanced video image processing from Faroudja as well as a proven ADC/PLL and Ultra-Reliable DVI or HDMI 1.1 compatible digital receiver with FRC to ensure proven PC graphics compatibility.
With Emmy award winning Faroudja DCDi® technology incorporating horizontal enhancement technology, advanced TV color control with Adaptive Contrast and Color (ACC) and Active Color Management-3D (ACM-3D), in addition to industry leading Motion Adaptive De-interlacing (MADi), advanced film mode detection, and response time compensation, the FLI59xx processes SDTV inputs to output images that are crisper with life-like quality.
The integrated picture-in-picture, embedded microcontroller, versatile OSD engine, low bandwidth general purpose ADC, and dual LVDS transmitters (or optional 24-bit TTL output) enables cost-effective HDTV-ready multi-function LCD monitor or LCD TV solutions.
The FLI59xx family of controllers includes the following products:
-
特徴
- Response Time Compensation (RTC)
- MADi, film mode detection, temporal noise reduction and cross color suppression for SDTV
- Panoramic scaling for wide output resolutions
- Frame Rate Conversion (FRC)
- Faroudja® Truelife™ horizontal enhancements
- TV color controls using ACC and ACM-3D
- Embedded x86 microprocessor with external SPI Flash ROM
- Versatile OSD controller for high quality bitmap-like TV OSD
- Dual LVDS transmitter for direct interconnect to LCD panels up to WUXGA 60 Hz
- Variable PIP window up to 640 x 480
- ITU601 (16-bit) video input
- Triple ADC and PLL up to 205 MHz
- Integrated HDMI 1.1 receiver up to 165 MHz (FLI5968H and FLI5928H)
- Integrated Ultra-Reliable DVI® receiver up to 165 MHz (FLI5962 and FLI5922)
- ITU656 video input
- DCDi Edge® processing
- HDCP supported with FLI59xxH versions
- Package: 256 PQFP

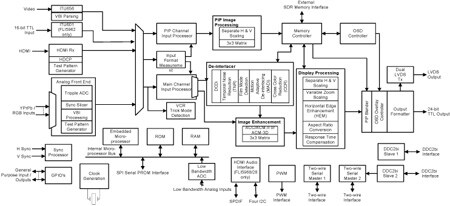

回路ダイアグラム
