EVLSTCH03-45WPD

Active

45W USB Type-C Power Delivery 3.0 adapter based on STCH03, SRK1001 and STUSB4761

データブリーフ ダウンロード

Order from our distributors

Check availability
概要
ツール & ソフトウェア
リソース
ソリューション
品質 & 信頼性
Sales Briefcase
eDesignSuite
Get Started
サンプル & 購入
Partner products

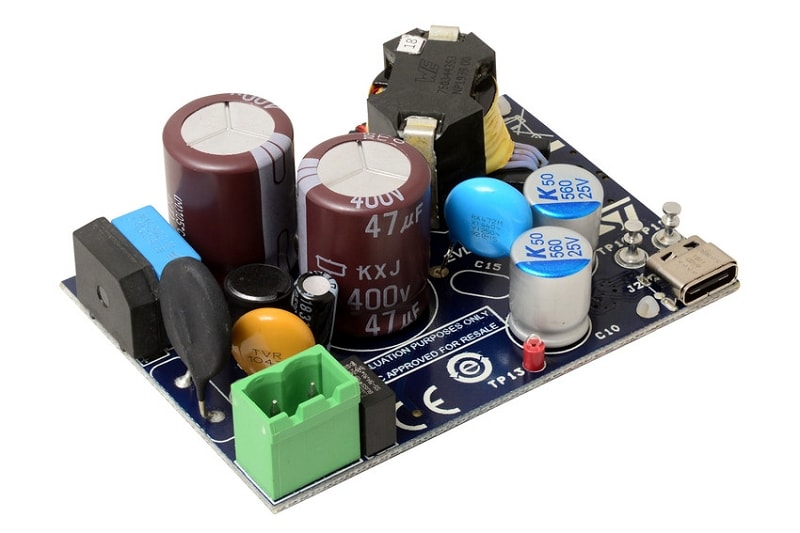

  • The EVLSTCH03-45WPD 45W USB Type-C® Power Delivery 3.0 adapter is a USB-IF certified solution and reference design. The EVLSTCH03-45WPD is an isolated power supply with a standalone USB PD controller. The evaluation board implements at the primary side a quasi-resonant flyback converter based on the STCH03 controller with optocoupler feedback for voltage regulation. This controller combines a high performance low-voltage PWM controller chip with a 650 V HV start-up cell in the same package. The STCH03 controller drives the gate of the new 650 V MDmesh™ M6 technology Power MOSFET STD7N65M6.

    At the secondary side, to increase the system efficiency, the rectification is based on the SRK1001 adaptive synchronous rectification controller. This controller drives the gate of the 100V STripFET™ F7 technology Power MOSFET STL110N10F7.
    Always on the secondary side the CC/CV regulation loop to drive the power regulation stage and the USB Type-C® PD interface are based on the STUSB4761 controller. This controller offers the benefits of a full hardware USB PD stack allowing robust, deterministic and safe negotiation in line with USB PD standard.
    The EVLSTCH03-45WPD is protected against destructive electrostatic discharge from the USB Type-C® connector using a Dual Transil array for ESD protection ESDA25L.
    The evaluation board implements a robust adapter protected for output overvoltage, output undervoltage, output overpower and output short-circuit.This reference design, based on STMicroelectronics semiconductors, helps designers to develop adapters with a short bill of materials in order to obtain a cost-effective and fast design.

    主な特徴

    • USB-IF certified
    • USB Type-C® PD 3.0 references:
      • Power Brick EVLSTCH03-45WPD TID: 2071
      • PD Controller STUSB4761 TID: 2070
    • Universal AC input range VIN:
      • 90 VAC to 264 VAC
    • PD output profile:
      • 5 V - 9 V - 12 V - 15 V @ 3 A
      • 20 V @ 2.25 A
    • Maximum efficiency at full load:
      • > 90% @ AC input range
    • No-load consumption (no cable plug-in):
      • < 30 mW @ 230 VAC
    • Energy efficiency meeting all DOE and UE CoC requirements
    • Isolated quasi-resonant flyback topology with adaptive synchronous rectification
    • Programmable output voltage and current protections
    • Safety according to EN60065
    • EMI according to EN55022 - Class B
    • Compact form factor: 70 x 50 X 26.8 mm
    • RoHS compliant

サンプル & 購入

製品型番
コア製品
製品ステータス
概算価格(USS)
Quantity
ECCN (US)
Country of Origin
Board production status
販売代理店からオーダー
STからオーダー
EVLSTCH03-45WPD STCH03, SRK1001, STUSB4761
Active
50 1 EAR99 - - 在庫チェック

Distributor availability ofEVLSTCH03-45WPD

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now

代理店レポートによる在庫データ: 2019-12-13

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-13

EVLSTCH03-45WPD

コア製品

STCH03, SRK1001, STUSB4761

製品ステータス

Active

Unit Price (US$)

50.0*

Distributor availability ofEVLSTCH03-45WPD

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now

代理店レポートによる在庫データ: 2019-12-13

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-12-13

Unit Price (US$)

50

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 Version Size Action
      DB4053
      45W USB Type-C® Power Delivery 3.0 adapter based on STCH03, SRK1001 and STUSB4761
      2.0
      855.29 KB
      PDF
      DB4053

      45W USB Type-C® Power Delivery 3.0 adapter based on STCH03, SRK1001 and STUSB4761

関連資料

    • 概要 Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      715.75 KB
      PDF

      eDesignSuite-The smart way to design your application

法務

    • 概要 Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

製品型番 製品ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant Material Declaration**
EVLSTCH03-45WPD
Active
CARD インダストリアル Ecopack1 -

EVLSTCH03-45WPD

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
