SPC56B-Discovery

量産中
Design Win

Discovery Kit for SPC56 B line - with SPC560B54L5 MCU

データブリーフのダウンロード Order Direct
概要
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
はじめる
Partner products
Sales Briefcase

製品概要

概要

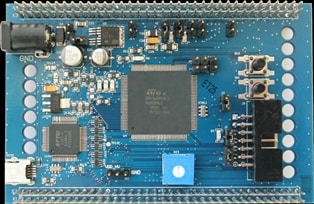

The SPC560B-DIS Discovery is a low cost and quick way to discover SPC56 B line.

Based on SPC560B54L5, the discovery board includes a JTAG debugger from PLS, LEDs, push buttons and extension headers to connect prototyping boards or additional modules.

PLS UDE software is available for free download and includes a perpetual 256 kByte debugging/programming license.

Free ready-to-run application firmware examples are available on SPC5Studio to support quick evaluation and development.

SPC5Studio includes visual configurable code generation engine, board support package (BSP), startup routines, interrupt services, free RTOS (optional) and a full set of low level drivers. SPC5Studio includes HighTec GNU "C" compiler, with a 30-days full free trial support. SPC5Studio is available for free download.

The SPC56 B line is designed to address the specific need of car body applications but as well many other markets where high temperature operation, high reliability, low power stand-by operation with quick wake up and real-time loads diagnostic are required.

A Community is available on ST WEB to get ST experts support in getting started quickly with SPC56 microcontrollers.

  • 特徴

    • SPC560B54L5 32-bit 48 MHz e200z0h CPU, 32-bit Power Architecture® Technology CPU, 768 kB Code Flash in an LQFP144 package.
    • On-board USB-JTAG PLS debugger and HW selection mode to use stand-alone JTAG debuggers.
    • Board power supply: through external +12 V PSU or from the USB bus (5 V supply voltage).
    • Seven LEDs: D6 for 5 V power on,D2 for Reset, D101, D102, D103 for PLS debugger section, D7 and D8 for PC3 and PC2 outputs
    • Two push buttons (reset and user)
    • A potentiometers for ADC input (user)
    • Two extension headers (2 x 36 pin - 100 mil) for all LQFP144 pins and for quick connection to prototyping boards, additional modules and easy probing.
    • JTAG interface (2 x 7 male 100mil connector)
    • USB port (mini -B)
    • 16 MHz crystal
    • Specification:
      • Board size 100 x 65 mm
      • MCU: SPC560B54L5 - LQFP144
      • 2 extension headers 2 x 36 pin - 100 mil
      • DC connector (+12 V input)
      • Mini USB - B
      • JTAG 2 x 7 - 100 mil connector

おすすめ製品

品質 & 信頼性

製品型番 マーケティング・ステータス RoHSコンプライアンスグレード 材料宣誓書**
SPC560B-DIS
量産中
Ecopack1

SPC560B-DIS

Package:

Ecopack1

Material Declaration**:

Marketing Status

量産中

RoHS Compliance Grade

Ecopack1

(**) st.comで提供している材料宣誓書は、パッケージ・ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
