STDES-7KWOBC

量産中
Design Win

7 kW on-board charger (OBC) reference design

データブリーフのダウンロード
概要
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
はじめる
Partner products
Sales Briefcase

製品概要

概要

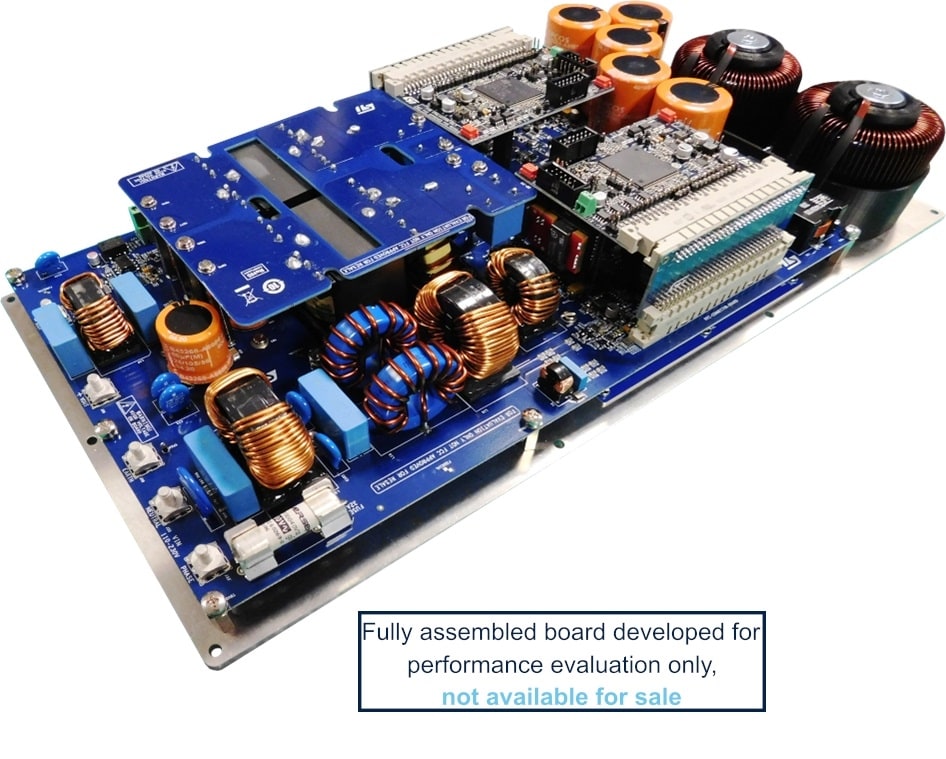

The STDES-7KWOBC is an on-board charger (OBC) reference design that allows charging the battery of electric vehicles (EV) through your home AC mains plug or a private/public outlet (AC charging station). The reference design embeds two sections: an interleaved totem pole PFC with SiC and a dual galvanic isolated full bridge LLC DC-DC ZVS resonant converter, based on MDmesh DM6 super-junction power MOSFETs.
The power platform is a 7 kW module able to deliver a constant current (CC) or constant voltage (CV) on the output to be used as standalone (1 PH+ N), in parallel or in 3-phase mode (3Ph + N) to reach 21 kW.
The underlying insulated metal substrate (IMS) on aluminum base plate enables very effective heat dissipation, forced air or liquid cooling.
Each module composing the reference design allows an easy interconnection among modules of the same type through wires or bus bar connection, reaching a higher output power.
This reference design key factor is the efficiency and high-power density gained thanks to SiC and SJ power MOSFETs, silicon and SiC diodes, gate drivers, the SPC58NN84E7RMHBR power architecture automotive-grade microcontroller, and SCR thyristors for inrush current limitation.
The STDES-7KWOBC is a fully assembled kit developed for performance evaluation only, not available for sale.
  • 特徴

    • Front-end PFC stage using 2-channel interleaved totem pole topology operating at 70 kHz
    • Digital inrush current control
    • DC-DC stage using FB LLC resonant topology with 140 kHz resonant frequency
    • Constant current and constant voltage mode
    • Control stage based on SPC58NN84E7RMHBR MCU
    • 12 V input supply voltage galvanically isolated from output voltage GND (high voltage battery)
    • Bus bar interconnection possibility
    • PFC stage:
      • Key products: TN3050H-12GY-TR SCRs, STBR3012G2Y bypass diodes, SCTH35N65G2V-7AG SiC power MOSFET
      • Input: 85 to 265 VAC, 45 to 65 Hz
      • Digital inrush current limiter
      • Max. input current: 32 Arms
      • Switching frequency: 70 kHz
      • Average current mode control in continuous conduction mode (CCM)
      • PID or 2p2z 2x independent current loop regulators
      • PID or 2p2pz voltage regulator
      • SPC58NN84E7RMHBR MCU controller
    • DC-DC stage:
      • Key products: STB47N60DM6AG power MOSFET, STPSC20065GY-TR output diodes, A6387 gate driver
      • Output voltage: 250 to 450 VDC
      • Switching frequency: 92 to 250 kHz with start-up at 350 kHz
      • Two independent current loops (CC)
      • One voltage loop plus current balancing (CV)
      • PID regulators
      • SPC58NN84E7RMHBR MCU controller
    • RoHs compliant

品質 & 信頼性

製品型番 マーケティング・ステータス パッケージ グレード RoHSコンプライアンスグレード WEEE Compliant 材料宣誓書**
STDES-7KWOBC
量産中
- インダストリアル - はい

STDES-7KWOBC

Package:

-

Material Declaration**:

Marketing Status

量産中

Package

-

Grade

Industrial

RoHS Compliance Grade

-

(**) st.comで提供している材料宣誓書は、パッケージ・ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください

サンプル & 購入

Swipe or click the button to explore more details Don't show this again
製品型番
Order from distributors
STから購入
コア製品
製品ステータス
サプライヤ
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STDES-7KWOBC

販売代理店に在庫がない場合は、STのセールス・オフィスまでお問い合わせください

SPC58NN84E7RMHBR, SCTH35N65G2V-7AG, TN3050H-12GY-TR, STH47N60DM6-7AG, A6387D
量産中
ST - - - Not for sale

STDES-7KWOBC 量産中

ECCN (US):
-
Budgetary Price (US$)*/Qty:
-

製品型番:

STDES-7KWOBC

コア製品:

SPC58NN84E7RMHBR, SCTH35N65G2V-7AG, TN3050H-12GY-TR, STH47N60DM6-7AG, A6387D

サプライヤ:

ST

ECCN (EU):

-

Country of Origin:

-

Board production status:

Not for sale

Swipe or click the button to explore more details Don't show this again

(*)概算用の参考価格(US$)です。現地通貨でのお見積りについては、STのセールス・オフィスまたは販売代理店までお問い合わせください。
