Product overview
概要
The STDES-VPGAN50FL implements a quasi-resonant flyback converter based on the VIPERGAN50 HV converter with optocoupler feedback for voltage regulation.
The device combines a high performance low voltage quasi-resonant PMW controller chip with a 650V E-mode GaN HEMT in the same package.
The advanced power management with the low quiescent current helps to achieve low standby consumptions
To increase the system efficiency, the rectification is based on the SRK1001 adaptive synchronous rectification controller. This controller drives the gate of the 100V STripFET F7 technology powering the MOSFET STL110N10F7.

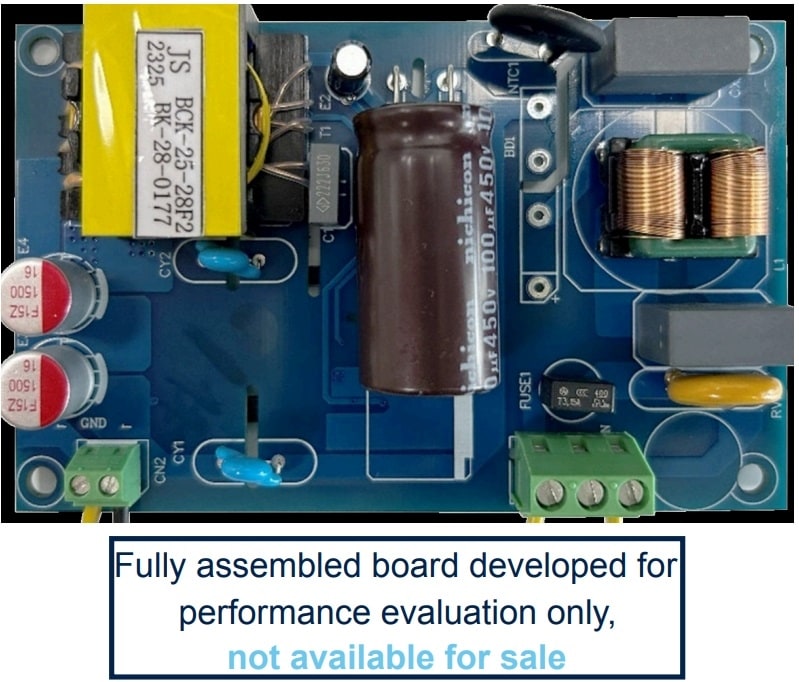

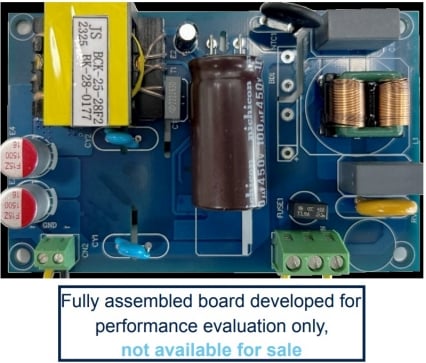

The evaluation board implements a robust adapter protected for output overvoltage, output undervoltage, output over power and output short-circuit.
The STDES-VPGAN50FL helps designers to develop adapters with a short bill of materials to obtain a cost-effective and fast design.
-
All features
- Input voltage range: AC from 176 to 265 V ac with 47 Hz to 63 Hz frequency
- Output voltage: single output 12 V dc
- Maximum output power: 50 W
- Peak efficiency: >94.5%
- Form factor: 107.7 mm (L)*68.4 mm (W)*20 mm (H)
