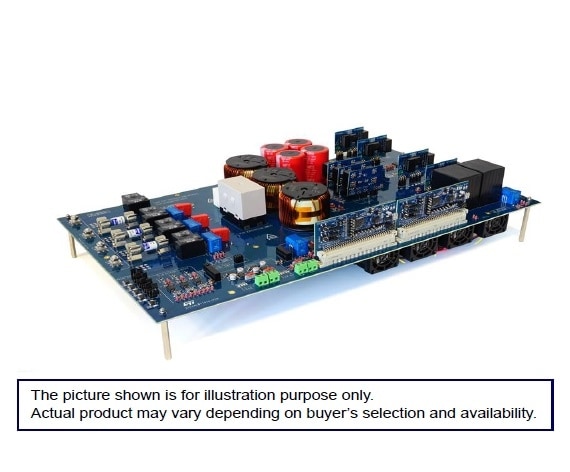

The STEVAL-11BID1KCB is an 11 kW bidirectional battery charger and represents a complete solution for high voltage charging in both the industrial and automotive fields.
It consists of two power stages: a PFC and an isolated DC-DC stage.
The PFC is based on a three-phase full-bridge topology.
The DC-DC section is Dual Active Bridge (DAB) topology.
Both stages are based on the ACEPACK DMT-32 SiC power module.
The board uses two control boards for the PFC and DC-DC stages respectively. The control board is based on the STM32G474RE microcontroller.
The PFC stage operating frequency is 70 kHz. The DC-DC stage is operating at a fixed switching frequency of 100 kHz.
A peak system efficiency of 96% was achieved for the design.
-
All features
- PFC stage 3-phase, 2-level bidirectional AC-DC power converter:
- Rated nominal AC voltage: 400 VAC at 50 Hz
- Rated nominal DC voltage: 800 VDC
- Nominal power: 11 kWRectifier mode:
Power factor: PF >0.99 Inrush current control and soft startup Inverter mode:Active and reactive power control Integrated grid connection solution
- DC-DC stage dual active bridge (DAB) power converter:
- Nominal DC input voltage 800 V
- Nominal DC output voltage 550 to 850 V
- DAB: switching frequency 100 kHz
- Power section based on SiC power modules:
- ACEPACK DMT-32 power module for high integration level
- High frequency operation for weight and size reduction
- Bidirectional capabilities
- DAB soft switching behavior enabled by enhanced modulation techniques management
- PFC stage 3-phase, 2-level bidirectional AC-DC power converter:
