STEVAL-MKI139V5   Not recommended for New Design. Product is in volume production only to support customers ongoing production.

Microphone coupon board based on the MP23AB01DH fully differential analog MEMS microphone

データブリーフのダウンロード

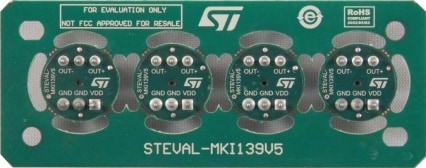

The STEVAL-MKI139V5 daughterboard contains four MP23AB01DH analog MEMS microphones.

The coupon concept facilitates performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.

主な特徴

  • 4 x MP23AB01DH bottom port analog MEMS microphones
  • Vsupply from 2.3 to 3.6 V
  • 135 dBSPL acoustic overload point
  • Omnidirectional sensitivity
  • Frequency range 100 Hz - 10 kHz
  • 65 dB of SNR
  • Sensitivity -38 dBFV ± 1 dBV
  • THD < 0.2% @ 94 dBSPL, 1 kHz
  • THD < 5% @ 130 dBSPL, 1 kHz
  • RoHS compliant

画像

×

リソース

技術文書

製品スペック
Description バージョン サイズ
DB3252 DB3252: Microphone coupon board based on the MP23AB01DH fully differential analog MEMS microphone 2.0 643 KB

ハードウェアリソース

Board Manufacturing Specifications
Description バージョン サイズ
STEVAL-MKI139V5 gerber files 1.0 311 KB
Bill of Materials
Description バージョン サイズ
STEVAL-MKI139V5 BOM 1.0 60 KB
Schematic Pack
Description バージョン サイズ
STEVAL-MKI139V5 schematics 1.0 62 KB
