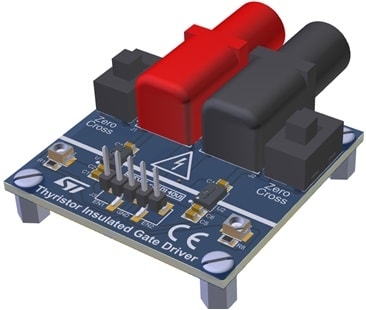

The STEVAL-SID140V1 allows to evaluate insulated control of thyristors SCRs with the STSID140-12 driver.
The STSID140-12 driver has a 40 mA of output current capability to drive SCR gate easily without any additional power supply in high voltage.
The galvanic-insulated inductive barrier allows a 1250 V rms rating-insulated voltage, compliant for the application of functional insulation, and with a high creepage distance at 3.9 mm.
Based on two TN5015H-8G SCR in back-to-back, this evaluation board is able to drive AC load connected on line up 4 Amps.
-
All features
- Isolated thyristor driver STSID140-12
- 1250 V RMS of insulation barrier (VISO)
- 40 mA output current for thyristor gate
- Power transfer from low voltage
- Direct MCU driving with I/O at 3.3 V
- Compact AC solid state-relay
- Up to 4 Amps AC load driving
- TN5015H-8G high temperature 50 Amps 800 V
- SCRs in back-to-back
- Compact D2PAK SMD package
- AC main zeros cross-triggering option
- 5-pins LV connectors for MCU control
- Two HV connectors for load and line connection
- Isolated thyristor driver STSID140-12
