製品概要
概要

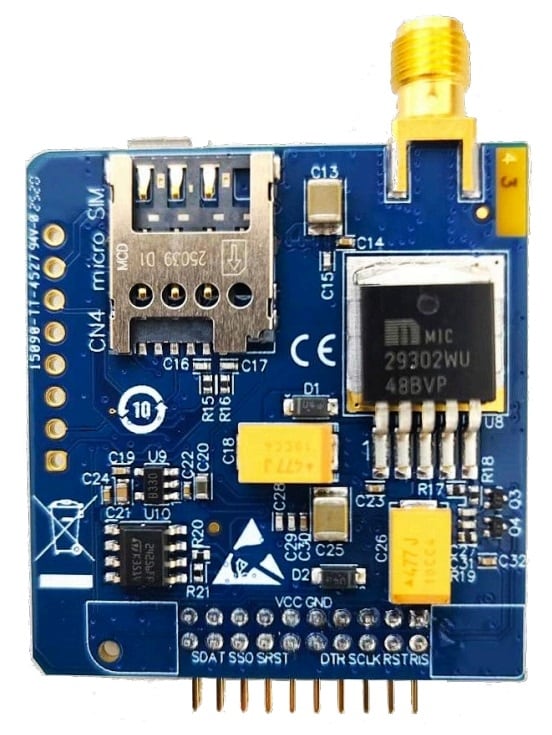

The STEVAL-ST4SIMV1 expansion board adds cellular connectivity to evaluation boards hosting the STMod+ expansion connector.
It embeds a cellular modem compatible with LTE Cat M1 & Cat NB1 & EGPRS netowrks and with an initial connectivity provided by a trusted telecom operator partner..
The ST4SIM-300M is ST's eSIM compliant with the GSMA SGP.32 specification. The new standard enables the remote switching of telecom operators.
The expansion board can be used only with the furnished antenna and is compatible with all STMicroelectronics Discovery kits featuring an STMod+ connector, such as the B-U585I-IOT02A.
It is also compatible with any STMod+ compatible evaluation board.
The package, combined with any compatible evaluation board, represents an ideal development platform for cellular and cloud technology-based solutions.
-
機能一覧
- ST4SIM-300M expansion for evaluation boards hosting the STMod+ connector
- ST4SIM-300M compliant to the GSMA SGP.32 eSIM for IoT
- Embedded Quectel BG96MA-128-SGN FCC and IC certified LTE module (FCC ID: XMR201707BG96 and IC: 10224A-201709BG96)
- Modem reset red LED and modem signaling green LED
- Switchable SIM interface, eSIM, and Micro-SIM
- Pulse SMA antenna for the following frequency ranges: 824/900/1800/1900/2100 MHz
- Modem firmware can be easily upgraded through the dedicated micro-B USB connector
推奨コンテンツ
すべてのリソース
| Resource title | Version | Latest update | Actions | Details | ダウンロード |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 16 Dec 2025 | 16 Dec 2025 |
BOM (1)
| Resource title | Version | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 16 Dec 2025 | 16 Dec 2025 |
Schematic Pack (1)
| Resource title | Version | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 16 Dec 2025 | 16 Dec 2025 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHSコンプライアンスグレード | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-ST4SIMV1 | Evaluation 製品の特性評価中です。エンジニアリング･サンプルは限定的にご利用いただけます。 | CARD | Industrial | Ecopack2 | Yes | - | - | |
STEVAL-ST4SIMV1
Package:
CARDMaterial Declaration**:
(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 製品ステータス | Budgetary Price (US$)*/Qty | STから購入 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-ST4SIMV1 | | | distributors 販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください |
|
|
STEVAL-ST4SIMV1 Evaluation
販売代理店に在庫がない場合は、STのセールス･オフィスまでお問い合わせください
（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
